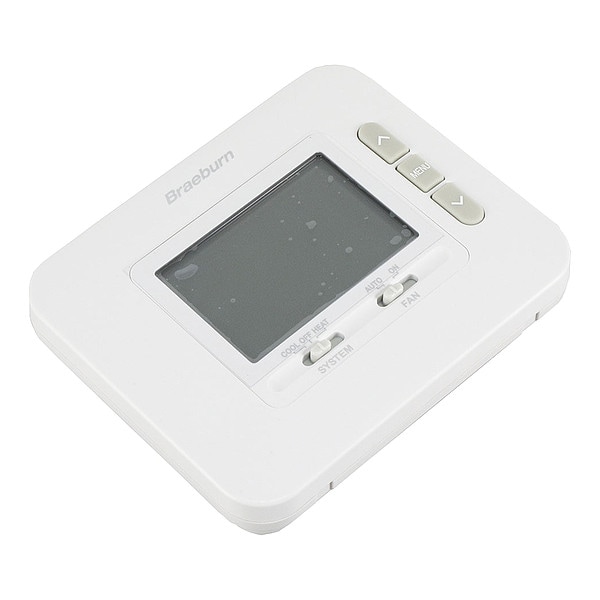

Thermostat, Digital, 4-1/4x5-1/8
| Item | Thermostat |
|---|---|
| Voltage | 24V AC |
| Dual Transformer Compatible | Yes |
| Control Type | Slide Switch |
| Key Pad Lockout | Yes |
| Temperature Limiting | Yes |
| Terminal Designations | B, C, G, O, Rc, Rh, W1, Y1 |
| Humidification Control | No |
| Dehumidification Control | No |
| Display Type | Digital |
| Includes | (2) AA Batteries, Mounting Screws W Anchors |
| Temporary Temperature Hold | Not Applicable |
| Standards | Not Applicable |
| Temporary Program Override | Not Applicable |
| Stages | 1H/1C Conventional, 1H/1C Heat Pump |
| Overall Width | 5-1/8 in |
| Overall Depth | 1 in |
| Compatible System Type | 2-Wire Hydronic Zone Systems |
| Backlit Screen Color | Blue |
| Application | Cool, Heat |
| Number of Heating Stages - Heat Pump System | 1 |
| Number of Cooling Stages - Conventional System | 1 |
| Number of Heating Stages - Conventional System | 1 |
| Programming Capability | Not Programmable |
| Number of Cooling Stages - Heat Pump System | 1 |
| Overall Height | 4-1/4 in |
| System Settings | Cool-Heat-Off |
| Differential Type | Adjustable |
| Electrical Connection Type | Hardwired, Battery |
| Maximum Operating Humidity | Not Applicable |
| Sensor Length | Not Applicable |
| System/Fan Settings | Auto-On, Cool-Heat-Off |
| Lead Length | Not Applicable |
| Mounting Direction | Horizontal |
| Thermostat Type | Low Voltage |
| Minimum Control Temperature | 45 deg F |
| Minimum Operating Humidity | Not Applicable |
| Number of Poles | Not Applicable |
| Sensor Diameter | Not Applicable |
| Shape | Rectangle |
| Number of Relay Inputs | Not Applicable |
| Filter Change Reminder | Yes |
| Changeover Type | Manual |
| Housing Color | White |
| Output Signal | Not Applicable |
| Pilot Duty Rating | Not Applicable |
| Number of Zones | 1 |
| Backlit Type | Touch Activated |
| Includes Positive Off | Yes |
| Frequency | Not Applicable |
| Maximum Control Temperature | 90 deg F |
| Battery Type | AA Batteries |
| Capillary Length | Not Applicable |
| Temperature Scale | Fahrenheit, Celsius |
| Lead Wire Gauge | Not Applicable |
| Millivolt Compatible | Yes |
| Digit Size | Standard |
| Mounting Direction/Shape | Horizontal |
| Minimum Operating Temperature | Not Applicable |
| Maximum Operating Temperature | Not Applicable |
| Amperage | 3A |
| Contact Rating | 24 V AC |
| Number of Pipes | Not Applicable |
| Housing Material | Plastic |
| Fan Settings | Auto-On |
| Temperature Sensitivity | +/-1.5 deg F |
| Number of Relay Outputs | Not Applicable |
| Lead Material | Not Applicable |
| Temperature Differential | +/- 1 Degrees F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
