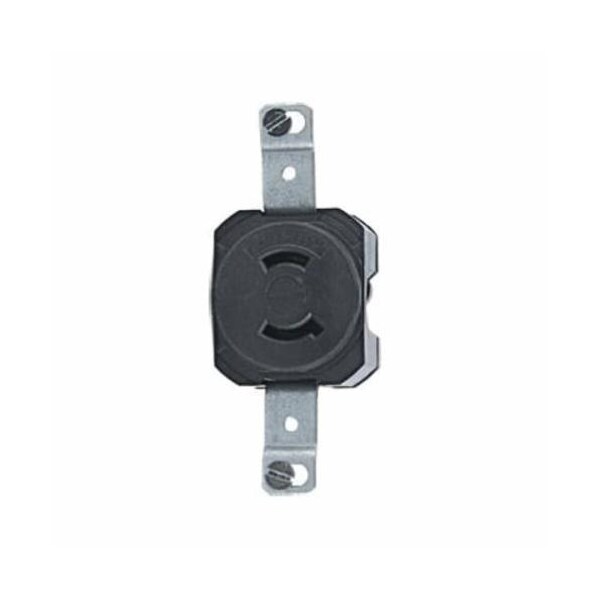

15A Single Receptacle 2P 2W 125V L1-15R Bk
| Voltage | 125 VAC |
|---|---|
| Color | Black |
| Height | 4.12 in |
| Cover Material | Nylon |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Current Interrupting | Certified for current interrupting at full rated current |
| Environment | Dry |
| Strap Material | Zinc-Plated Steel |
| Base Material | RTP |
| Terminal Screws | Brass 8-32 |
| Operating Temperature | -40°C to 75°C |
| Screw Terminal Torque | 14 in-lbs |
| Contact - Spring Value | .031" Brass |
| Wire | 2 |
| NEMA | L1-15R |
| Amperage | 15 A |
| Grounding | Non-Grounding |
| Ground Contacts | Brass |
| Grounding Screw | Brass |
| Pole | 2 |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Mounting Screws | Zinc-Plated Steel 8-32 |
| Terminal ID | Brass-Hot, Silver-Neutral |
| Terminal Accom. | 18-10 AWG |
| Clamp Nuts | Brass |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399) |
| Temperature Rating | -40 to +60 °C |
| Voltage Rating | 125 V |
| Mounting | Box |
| Grade | Industrial |
| Type | Single Receptacle |
| Length | 13-3/8 in |
| Application | Commercial |
| Dielectric Strength | 2000 (Min.) V |
| Environmental Conditions | Flammability |
| Package Quantity | 1 |
