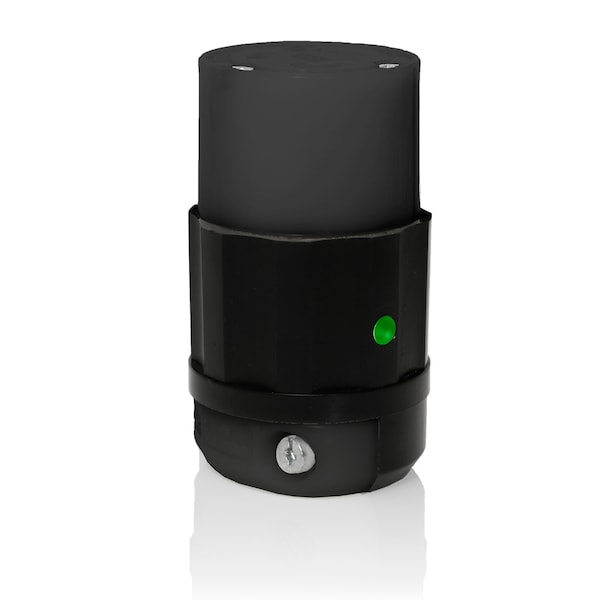

20A Locking Connector 2P 3W 125Vac L5-20R Bk
| Item - Plugs and Receptacles | Locking Connector |
|---|---|
| Item | Locking connector |
| Amps | 20 |
| Grade - Plugs and Receptacles | Industrial |
| Voltage | 125VAC |
| Amps - Plugs and Receptacles | 20 |
| NEMA Configuration | L5-20R |
| NEMA Plug Configuration - Plugs and Receptacles | L5-20R |
| Voltage - Plugs and Receptacles | 125VAC |
| Color - Plugs and Receptacles | Black |
| Number of Poles | 2 |
| Color | Black |
| Number of Wires | 3 |
| Phase | 1 |
| HP | 1 |
| Application | Industrial Applications |
| Cord Size | 0.385 to 0.72 in |
| Corrosion Resistant | No |
| Material | Nylon |
| NEMA Rating | WD-6 |
| Standards | UL Fed Spec WC-596/UL498/CSA C22.2 No. 42/NOM/NEMA/ANSI |
| Grade | Industrial |
| Body Material | Impact Modified Nylon |
| Power Indicator | No |
| Environment | Dry |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Type | Cable Mount |
| Flame Resistant | Rated HB or better UL94 |
| Dielectric Strength | Withstands 2000V per UL498 |
| Length | 11.813 in |
| Height | 4.12 in |
| Voltage Rating | 125 |
| Dimensions | 28 in Dia x 3.53 in L |
| Cord Diameter | 0.385 to 0.78 |
| Temperature Rating | -40 to 60 |
| Terminal Type | Screw |
| Package Quantity | 1 |
