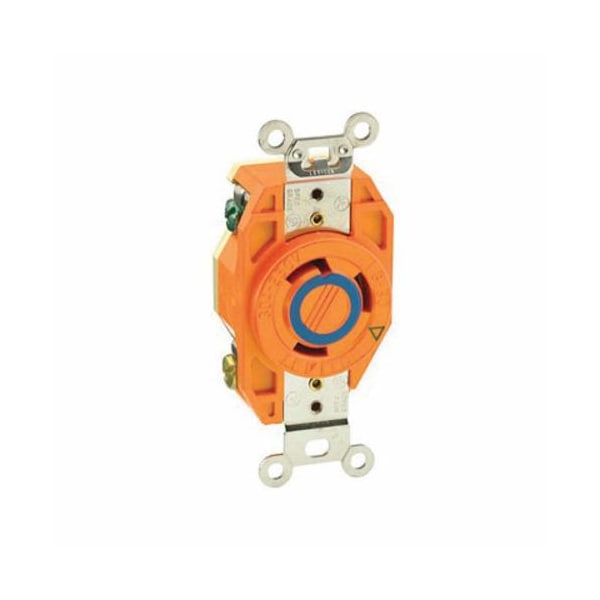

30A Flanged Outlet Locking Receptacle 2P 3W 125V
| NEMA Configuration | WD-6, WD-1 |
|---|---|
| Voltage | 250 VAC |
| Amps | 30 |
| Color | Orange |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Standards | 498; C22.2 No. 42 |
| Body Material | Valox 357 |
| HP | 2 HP |
| Special Features | Isolated Ground |
| Base Material | Valox |
| Wire Size | 14-8 AWG |
| Flammability | Rated V-0 per UL 94 |
| Operating Temp. | -40A Deg C to 60A Deg C |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Height | 4.12 in |
| Length | 1.81 in |
| Width | 1.88 in |
| Application | Commercial |
| Package Quantity | 1 |
