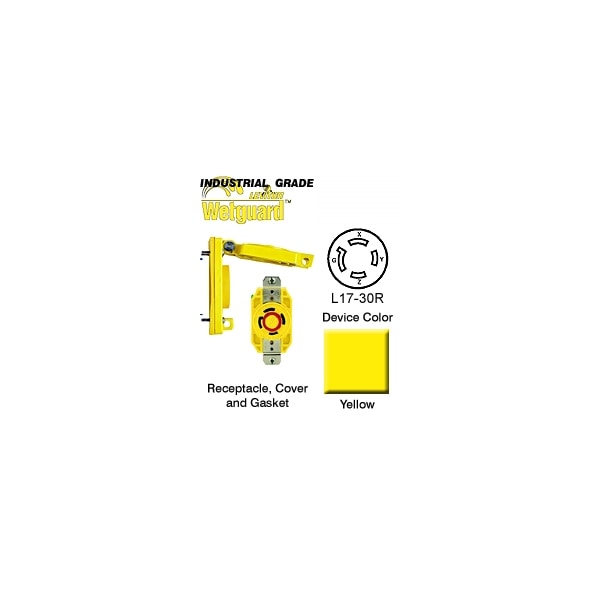

Receptáculo de bloqueo de 30 amperes, 3 polos y 4 cables, 600Vca L17-30R Amarillo.
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L17-30R |
| Voltage | 600VAC |
| Amps | 30 |
| Color | Yellow |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | 3 |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| NEMA Rating | 3, 3S, 4, 4X, 6, 6P |
| Standards | UL/CSA/NOM/NEMA WD-6/ANSI C-73 |
| IP Rating | 67 |
| Grade | Industrial |
| Mounting Type | Flush Mount |
| HP | 10.0 |
| Material | Nylon |
| Special Features | With Locking Cover |
| Wire Size | 14-8 AWG |
| Flammability | Rated V-0 per UL 94 |
| Temp. Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Operating Temp. | -40A Deg C to 60A Deg C |
| Base Material | Nylon |
| Width | 3-1/2 in |
| Length | 4.88 in |
| Height | 3 in |
| Package Quantity | 1 |
