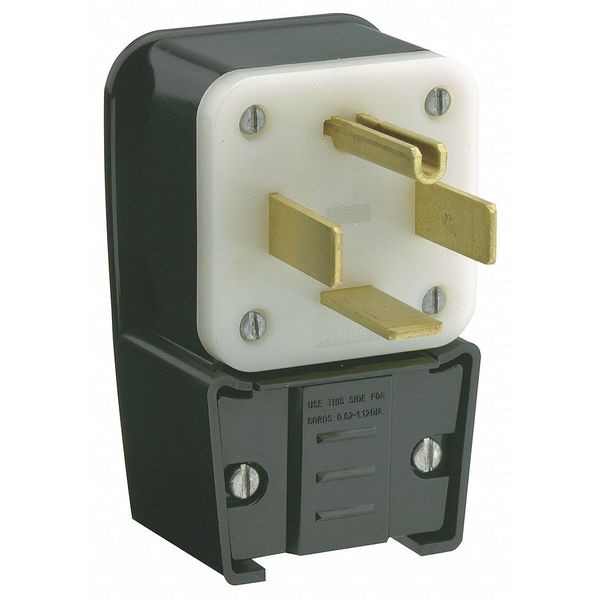

Agl Strt Blade Plug, Blk, 60 A, Stnd, 14-60P
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Angle Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | Industrial |
| Amps - Plugs and Receptacles | 60 A |
| Voltage - Plugs and Receptacles | 125/250VAC |
| NEMA Plug Configuration - Plugs and Receptacles | 14-60P |
| Number of Wires | 4 |
| Number of Poles | 3 |
| Cord Size | .625 - 1.375 |
| Phase | Single |
| IP Rating | Not Rated |
| HP | 3-1/2 |
| NEMA Rating | WD-6 |
| Standards | ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, NOM 057 Certified, RoHS Compliant |
| Color - Plugs and Receptacles | Black |
| Material | Super Tough Nylon |
| Grade | General Use |
| Special Features | Ratings are permanently marked on device |
| UL 94 Flammability Rating | V-2 |
| Minimum Wire Size | 10 AWG |
| Housing Color | Black |
| Current Rating | 60 A |
| Minimum Operating Temperature | -40 deg F |
| Body Length | 1.89 in |
| NEMA Plug Configuration | 14-60P |
| Maximum Wire Size | 4 AWG |
| Maximum Operating Temperature | 140 deg F |
| Polarized | Yes |
| Connection Orientation | Angled |
| Number of Blades | 4 |
| Market | Industrial |
| Wire Connection Type | Screw Terminals |
| Hazardous Location Specification | Not Applicable |
| Resistance Properties | Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant |
| For Maximum Cable Diameter | 1-3/8 in |
| Horsepower Rating | 3.5 HP |
| Grounding | Grounded |
| For Minimum Cable Diameter | 5/8 in |
| Shrouded | No |
| NEMA Enclosure Rating | Not Rated |
| Housing Material | Super Tough Nylon |
| Insulation Material | Nylon |
| Blade Material | Brass |
| Voltage Rating | 125/250V AC |
| Operating Temp. | -40°C to 60°C |
| Torque Range | 16 to 20 in-lb |
| Wire Gauge | 10-4 AWG; Up to 4 AWG |
| Body Material | Super Tough Nylon |
| Assembly Screws | Steel, Zinc Plated |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Temp. Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Dielectric Strength | Withstands 2000V per UL498 |
| Package Quantity | 1 |
