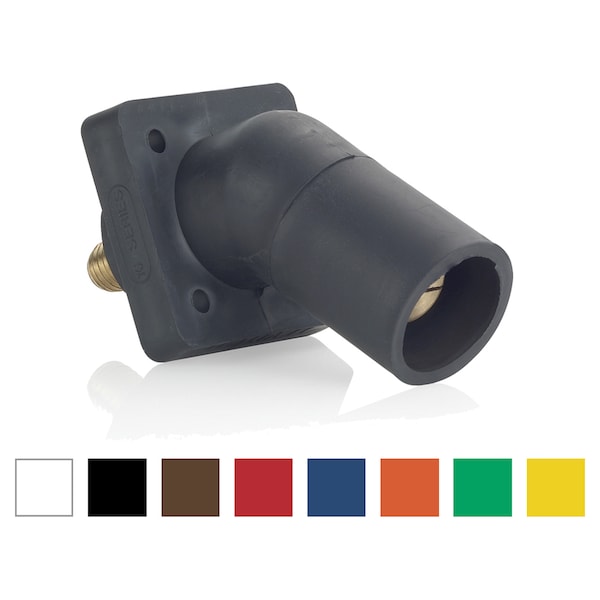

Angled Receptacle, Blk, Male, 3R, 4X, 12K
| Item | Angled Receptacle |
|---|---|
| Type | Female |
| Series | 16 |
| Terminal Connection | Threaded Stud |
| Male/Female | Male |
| Current Rating | 400 A |
| Voltage Rating | 600VAC |
| NEMA Rating | 3R, 4X, 12K |
| Material | Thermoplastic Elastomer |
| Color | Black |
| Amps AC/DC | 400 AC/DC |
| Single Pole Device Style | Taper Nose |
| Fits | 16 Series Female |
| Conductor Material | Solid Brass |
| Cable Range | 2 to 4/0 |
| Standards | UL,CSA |
| Mounting | Screw Mount |
| Application | Sports, Entertainment and Movie Industry, Welding and Construction Sites, Theme Parks and Carni |
| Height | 7-1/4 in |
| Width | 10 in |
| Length | 5-1/2 in |
| Dimensions | 2-1/4 in L x 4.39 in W |
| Contact Material | Brass |
| Number of Poles | 1 |
| Amperage Rating | 400 A |
| Housing Material | Santoprene TPV |
| Mounting Type | Panel |
| Package Quantity | 1 |
