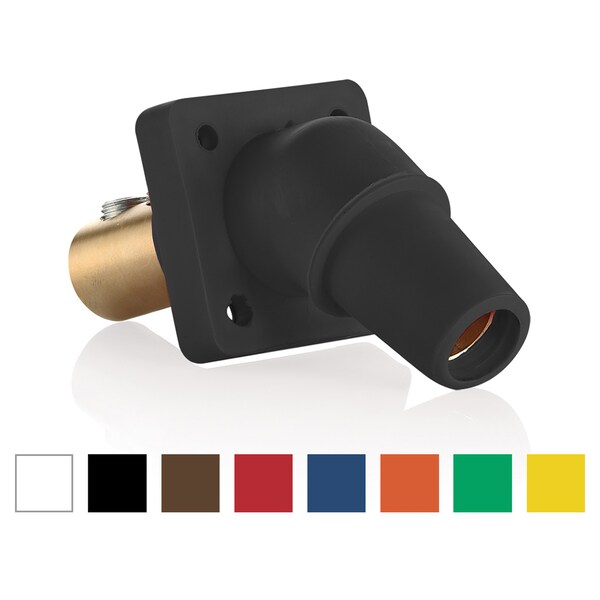

Este tomacorriente angular de color negro con punta cónica está diseñado para conexiones seguras y eficientes. Fabricado por Leviton, es ideal para aplicaciones domésticas y comerciales.
| Item | Angled Receptacle |
|---|---|
| Type | 16 Series Single Pole Cam |
| Series | 16 |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600VAC/250VDC |
| NEMA Rating | 3R, 4X, 12 |
| Single Pole Device Style | Taper Nose |
| Color | Black |
| Conductor Material | Solid Brass |
| Standards | UL & CSA |
| Cable Range | 2/0 to 4/0 |
| Mounting | Screw Mount |
| Material | Thermoplastic Elastomer |
| Amps AC/DC | 300/400AC/DC |
| Fits | Male Plug |
| Application | Commercial, Navy Shipbuilding, Sports, Entertainment, Movie Industry, Welding, Construction Sit |
| Width | 11 in |
| Height | 7-1/4 in |
| Length | 8 in |
| Amperage Rating | 400 A |
| Number of Poles | 1 |
| Package Quantity | 1 |
