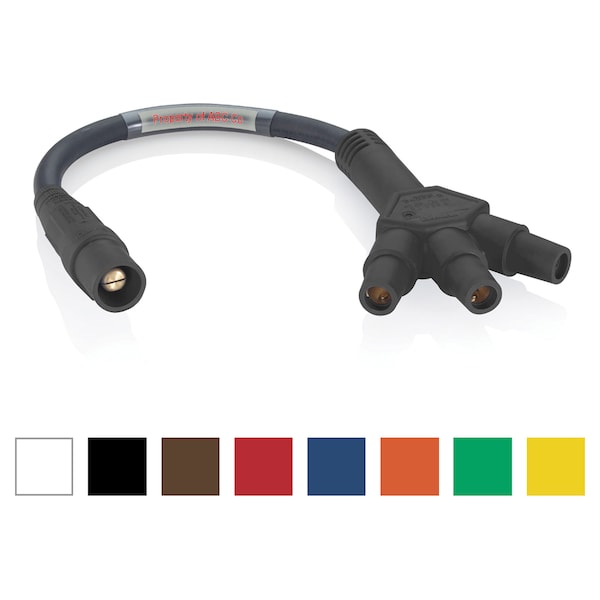

Conector triple cableado en color blanco, con diseño cónico y terminación macho. Ideal para conexiones eléctricas seguras y confiables.
| Item | Cabled Triple Connector |
|---|---|
| Type | Cam Type Soft Taper Nose |
| Series | 16 |
| Male/Female | Male-Female-Female-Female |
| Current Rating | 400 A |
| Voltage Rating | 600VAC/250VDC |
| NEMA Rating | 3R, 4X, 12 |
| Color | White |
| Housing Material | TPV |
| Standards | UL & CSA |
| Material | Thermoplastic Elastomer |
| Contact Material | Brass |
| Fits | 3-Female Plugs |
| Single Pole Device Style | Taper Nose |
| Conductor Material | Solid Brass |
| Amps AC/DC | 300/400AC/DC |
| Length | 10.88 in |
| Width | 7-3/4 in |
| Wire Size | 4/0 |
| Height | 5.62 in |
| Application | For temporary and semi-permanent power distribution applications |
| Standard | CSA, UL |
| Specifications | 1-Pole, NEMA 3R, 24 in L Cable |
| Dimensions | 6.05 in H x 6.27 in W |
| Number of Poles | 1 |
| Connection Type | Male x Female x Female x Female |
| Amperage Rating | 400 |
| Package Quantity | 1 |
