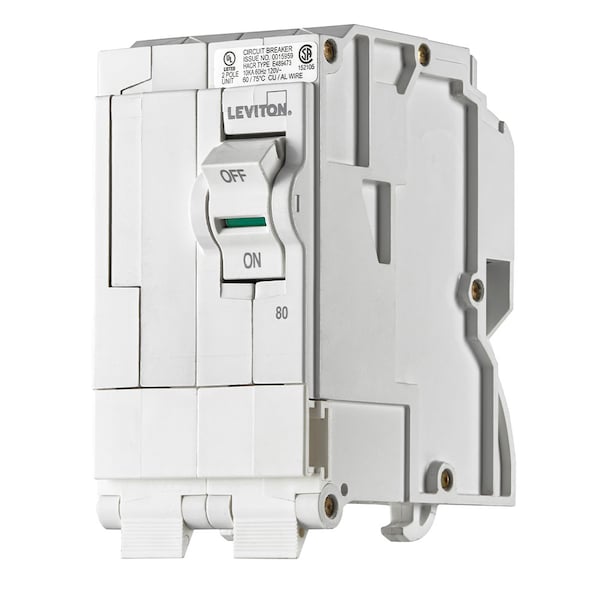

Circuit Breaker, 80A, 2 Pole, 120/208/120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Amps | 80A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/208/120/240V AC |
| Circuit Breaker Type | Fault Current Controller |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA |
| Trip Type | Hydraulic Magnetic |
| Terminal Connection | Plug On |
| Width | 2.38 in |
| Depth | 3.1 in |
| Height | 3-1/2 in |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10 |
| Standards | CSA, UL Listed |
| Standard | UL 489 |
| Operating Temperature | -40 to 85 °C |
| Temperature Rating | -40 to 85 |
| Package Quantity | 1 |
