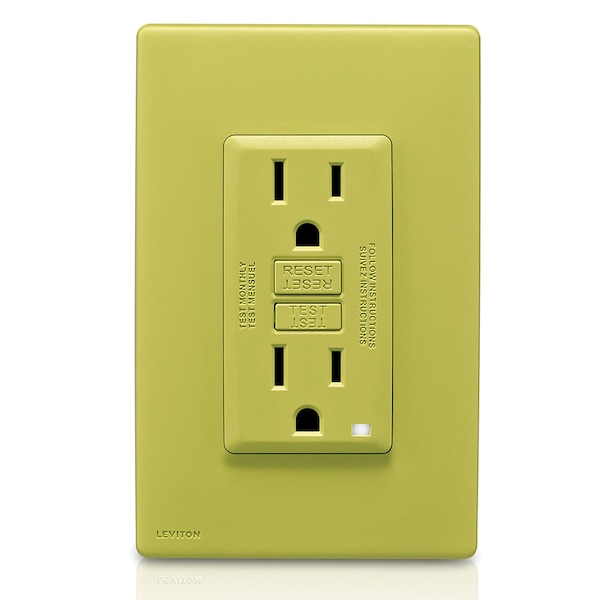

Circuit Interruptor, 15A, 125V AC, 2, 3 Poles
| Item | Circuit Interruptor |
|---|---|
| Tamper Resistant | Yes |
| Amps | 15 |
| Length | 12.436 in |
| Height | 9-3/4 in |
| Body Material | Polycarbonate |
| Number of Poles | 2, 3 |
| Voltage | 125 V |
| Color | Granny Smith Apple |
| Type | GFCI |
| Dielectric Voltage | Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06 |
| Flammability | Rated HB or better UL94 |
| Feature | Renu Self-Test GFCI |
| Strap Material | Galvanized Steel |
| NEMA | 5-15R |
| Clamps | Brass |
| Terminal Screws | Steel |
| Face Material | Thermoplastic |
| Terminal Accom. | 14-10 AWG |
| CSA C22.2 No. 42 | Yes |
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Trip Level | Class A, 5mA plus or minus 1mA |
| ANSI | C-73 |
| Grounding | Self-Grounding Clip and Green Ground Screw |
| Line Contacts | Brass Double Wipe .031 Thick |
| Torque Range | 14 -18 in.-lbs |
| Color Change Kit | RKG15 |
| Grounding Screw | Steel |
| Wire | 3 |
| Amperage | 15 A |
| At Rated Voltage | 1 HP |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Grade | Residential/Commercial Specification Grade |
| Termination | Back, Side |
| Yoke | Zinc-Plated Steel |
| Short Circuit Current Rating | 10KA |
| Standards and Certifications | cULus |
| Package Quantity | 1 |
