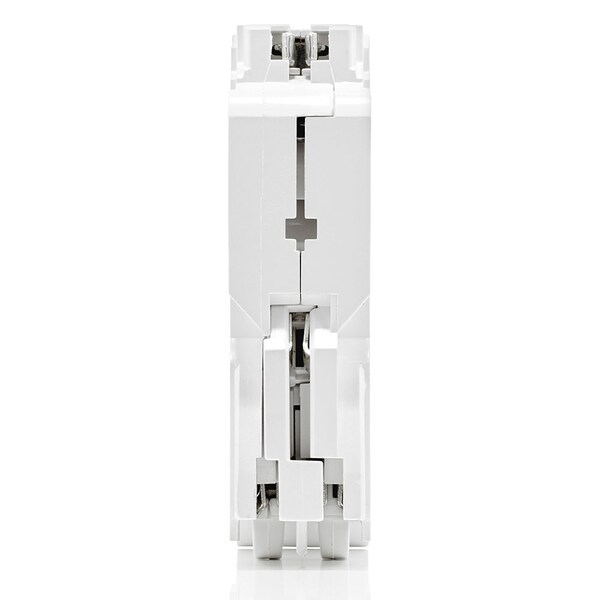

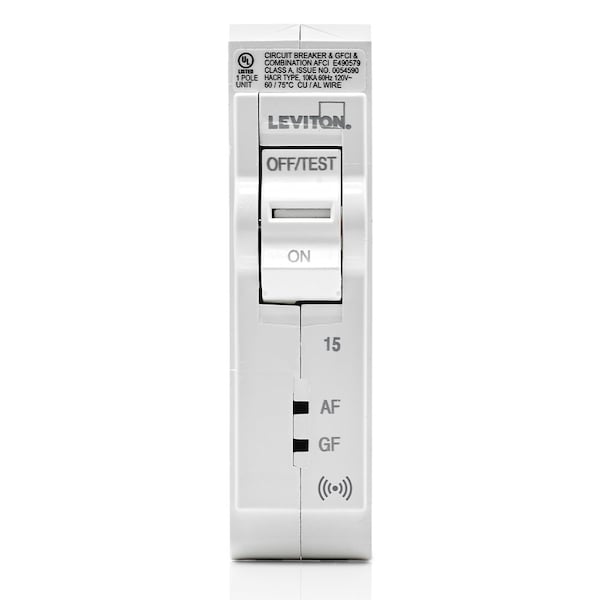

Combination Circuit Breaker, 15A, 1 Pole, 120V AC
| Item | Combination Circuit Breaker |
|---|---|
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Fault Current Controller |
| Phase | 1 |
| Trip Type | Hydraulic Magnetic |
| Terminal Connection | Plug On |
| Width | 1-1/4 in |
| Depth | 3.1 in |
| Height | 3-1/2 in |
| DC Voltage Rating | Not Rated |
| Application | Residential and Commercial Applications |
| Standards | CSA, UL Listed |
| Current Rating | 10 A |
| Standard | UL 489, UP 1699.A, CSA-C22.2 |
| Operating Temperature | -40 to 85 °C |
| Package Quantity | 1 |
