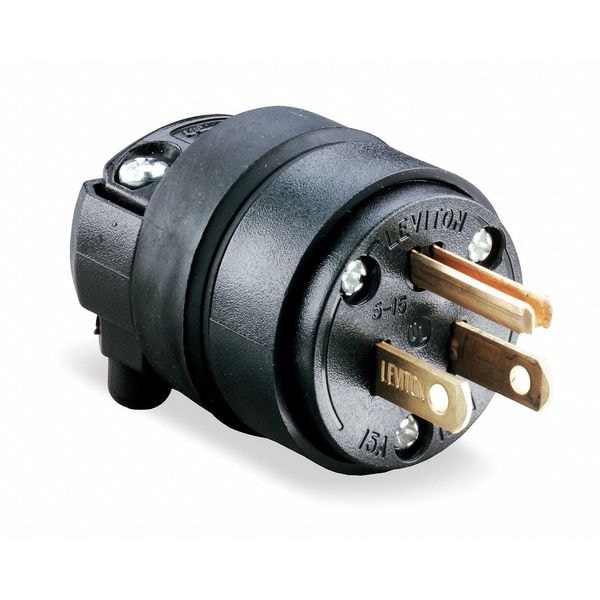

Clavija recta comercial, 2 polos, 15 A, 125V CA, 5-15P, terminal de tornillo, negro.
| Item - Plugs and Receptacles | Straight Blade Plug |
|---|---|
| Item | Straight Blade Plug |
| Wiring Style | Standard |
| Grade - Plugs and Receptacles | General |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Plug Configuration - Plugs and Receptacles | 5-15P |
| Number of Wires | 3 |
| Color | Black |
| Number of Poles | 2 |
| Phase | Single |
| Material | EPTR Rubber |
| IP Rating | Not Rated |
| Special Features | Ratings and NEMA I.D. permanently marked on device; Certified for current interrupting at full rated current |
| NEMA Rating | WD-6 |
| Grade | General |
| Color - Plugs and Receptacles | Black |
| Cord Size | 0.245 to 0.7 in |
| Standards | ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393 |
| Current Rating | 15 A |
| Minimum Operating Temperature | -40 deg F |
| Wire Connection Type | Screw Terminals |
| Minimum Wire Size | 18 AWG |
| Blade Material | Brass |
| NEMA Plug Configuration | 5-15P |
| Market | Residential |
| Housing Color | Black |
| For Maximum Cable Diameter | 0.7 in |
| Horsepower Rating | 0.5 HP |
| Maximum Wire Size | 12 AWG |
| Maximum Operating Temperature | 140 deg F |
| Grounding | Grounded |
| UL 94 Flammability Rating | V-2 |
| Number of Blades | 3 |
| Polarized | No |
| For Minimum Cable Diameter | 0.245 in |
| Housing Material | Rubber |
| Connection Orientation | Straight |
| Voltage Rating | 125V AC |
| Operating Temp. | -40°C to 60°C |
| Application | 515PV |
| Assembly Screws | Steel, Zinc Plated |
| Flammability | Rated V-2 per UL 94 |
| Temp. Rise | Max 30C after 50 cycles OL at 150 percent rated current |
| Body Material | Rubber |
| Dielectric Strength | Withstands 2000V per UL498 |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Wire Gauge | 18-12 AWG; 18-12 AWG |
| Package Quantity | 1 |
