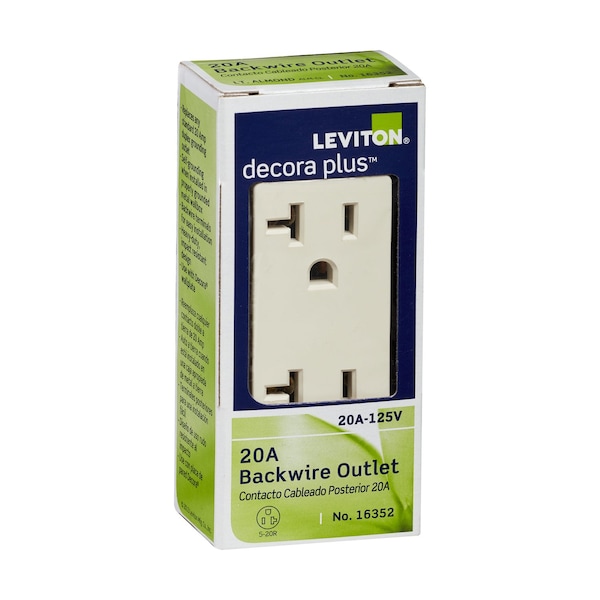

Decora Plus 20 amps 125 V Duplex Light Almond Outlet 5-20R
| Color | Light Almond |
|---|---|
| Voltage | 125 VAC |
| NEMA | WD-6 |
| Screw Terminal Torque | 14-18 in-lbs |
| Grounding Screw | Brass 8-32 |
| Operating Temperature | -40C to 60C |
| Wire | 3-Wire |
| Face Material | Thermoplastic Nylon |
| Pole | 2-Pole |
| Amperage | 20 A |
| UL498 | File E13399 |
| ANSI | C-73 |
| Dielectric Voltage | Withstands 2000V per UL498 |
| Grade | Commercial Specification Grade |
| Terminal Screws | Brass 10-32 |
| Terminal Accom. | 14-10 AWG |
| Current Limiting | Full Rated Current |
| Device Type | Duplex Receptacle Outlet |
| Ground Clips | Brass-Plated |
| Grounding | Self-Grounding |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Termination | Back, Side Wire |
| Feature 4 | Smooth Face |
| Strap Material | Steel |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| At Rated Voltage | 1 HP |
| Body Material | Thermoplastic Nylon |
| Flammability | Rated V-2 per UL94 |
| Clamp Nuts | Zinc-Plated Steel |
| CSA C22.2 No. 42 | File LR-406 |
| Package Quantity | 1 |
