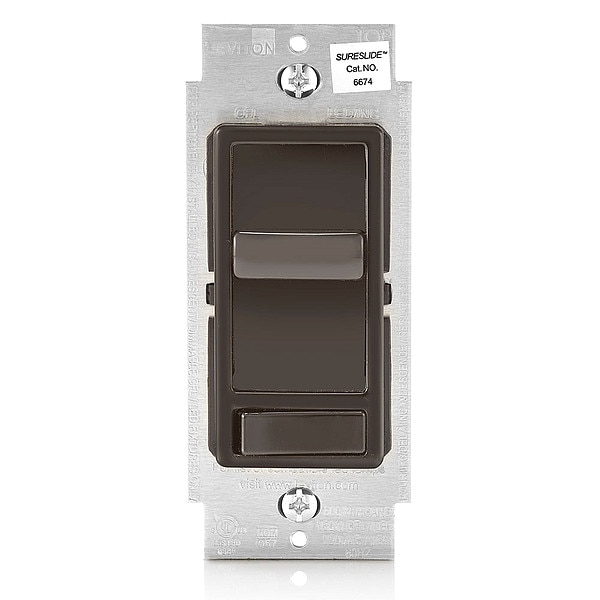

Dimmer, 1-Pole/3-Way, 120VAC, Brown
| Item - Motion Sensing and Dimming | Dimmer |
|---|---|
| Switch Style - Motion Sensing and Dimming | Slide |
| Lighting Technology | Fluorescent, Incandescent, LED |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 120V AC |
| Max. Capacity @ 120VAC | 150W (CFL, LED), 600W (Halogen, Incandescent) |
| Color - Motion Sensing and Dimming | Brown |
| Installation Location - Motion Sensor | Wall Switch Box |
| Description/Special Features | Advanced, Built-in Radio/TV Interference Filter, Convenient, Flexible, Innovative |
| Wall Plate | Not included |
| Voltage | 120 VAC |
| Standards | UL Listed/CSA Certified |
| Switch Type | 1-Pole, 3-Way |
| Item | Lighting Dimmer |
| Switch Style | Rocker On/Off, Slide Dimming |
| Color | Brown |
| Load Rating @ 277V AC | Not Applicable |
| Maximum Operating Temperature | 131 deg F |
| Includes Wall Plate | Wall Plate Not Included |
| Rated Frequency | 60 Hz |
| Number of Switches | 1 |
| Load Rating @ 120V AC | 150W (CFL, LED), 600W (Incandescent) |
| Dimming Type | Full Continuous Dimming |
| Minimum Operating Temperature | 32 deg F |
| Overall Height | 4.12 in |
| Series | SureSlide |
| Illuminated | No |
| Overall Width | 1.73 in |
| Neutral Required | No |
| Type | Electro-Mechanical |
| Standards and Certifications | CSA, UL |
| Preset | Yes |
| Load Rating | 600W Incandescent, 150W LED and CFL |
| Wallplate | Order Separately |
| Action | Standard ON/OFF |
| Available Colors | Ivry-I Wht- W Blk-E Brwn-B Light Almond-T |
| NEMA SSL 7A | Yes |
| Load Type | Incandescent, Dimmable LED, Dimmable CFL |
| Style Name | SureSlide |
| Protection | Radio/TV Filter |
| Ordering Notes | White |
| Frequency | 60 Hz |
| Package Quantity | 1 |
