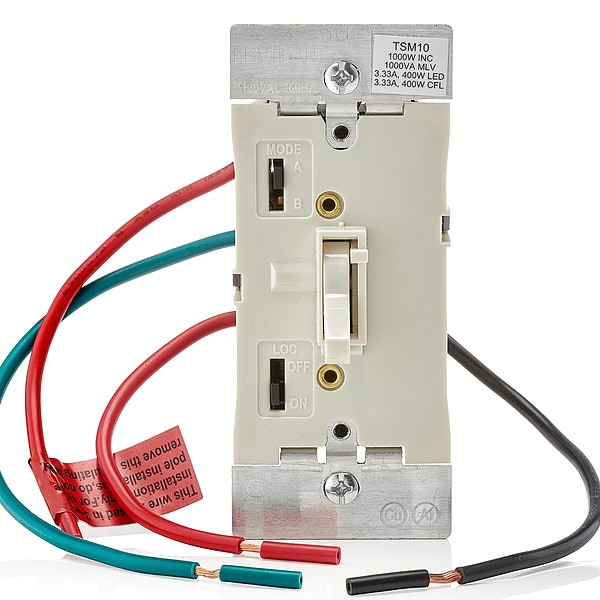

Dimmer, 1-Pole/3-Way, 120VAC, Light Almond
| Item - Motion Sensing and Dimming | Dimmer |
|---|---|
| Switch Style - Motion Sensing and Dimming | Slide, Toggle |
| Lighting Technology | Fluorescent, Halogen, Incandescent, LED |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 120V AC |
| Max. Capacity @ 120VAC | 1000VA (MLV), 1000W (Incandescent), 400W (CFL, LED) |
| Color - Motion Sensing and Dimming | Light Almond |
| Installation Location - Motion Sensor | Wall Switch Box |
| Voltage | 120 VAC |
| Switch Style | Toggle On/Off, Mini-Slide Dimming |
| Description/Special Features | Built-in Radio/TV Interference Filter, Compact, Integrated Linear Full-Range Slide Control, Microprocessor Control Offers Flexibility, Programming Feature Allows Users to Modify the Dimming Range, Slim |
| Color | Light Almond |
| Switch Type | 1-Pole, 3-Way |
| Item | Lighting Dimmer |
| Wall Plate | Not included |
| Standards | cCSAus, NOM, RoHS Compliant |
| Includes Wall Plate | Wall Plate Not Included |
| Minimum Operating Temperature | 32 deg F |
| Maximum Operating Temperature | 131 deg F |
| Overall Height | 4.1 in |
| Neutral Required | No |
| Series | ToggleSlide |
| Dimming Type | Full Continuous Dimming |
| Load Rating @ 277V AC | Not Applicable |
| Overall Width | 1-3/4 in |
| Overall Depth | 0.7 in |
| Number of Switches | 1 |
| Illuminated | Yes |
| Rated Frequency | 60 Hz |
| Load Rating @ 120V AC | 1,000VA (MLV), 1,000W (Incandescent), 400W (CFL, LED) |
| Load Type | Incandescent, Halogen, Dimmable LED, Dimmable CFL |
| Locator Light | Green locator light that can be disabled |
| Wallplate | Order Separately |
| Standards and Certifications | NOM, cCSAus |
| Action | Toggle Switch for ON/OFF, slide bar for lighting level control |
| Protection | Radio/TV Filter |
| Preset | Slide bar preserves desired lighting level |
| Load Rating | 1000W Incandescent, 1000VA MLV, 400W LED and CFL |
| Phase Control | Forward phase control |
| Available Colors | White, Ivory, Light Almond |
| Style Name | Toggle Slide |
| Frequency | 60 Hz |
| Type | Electro-Mechanical |
| Package Quantity | 1 |
