Dimmer, 1-Pole/3-Way, 120VAC, Low Voltage
| Item - Motion Sensing and Dimming | Dimmer |
|---|---|
| Switch Style - Motion Sensing and Dimming | Slide |
| Includes | White, Ivory and Light Almond Color Change Kit |
| Lighting Technology | Fluorescent, Incandescent, LED |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way |
| Number of Gangs | 1 |
| Operating Voltage - Motion Sensing and Dimming | 120V AC |
| Max. Capacity @ 120VAC | 300W (Magnetic Low-Voltage) |
| Color - Motion Sensing and Dimming | White, Ivory, Light Almond |
| Standards | RoHS Compliant, UL Listed/CSA Certified |
| Color | White, Ivory, Light Almond |
| Voltage | 120 VAC |
| Switch Style | Push Button On/Off, Slide Dimming |
| Description/Special Features | 5 Year Limited Warranty, Radio/TV Filter Protection |
| Wall Plate | Not included |
| Item | Lighting Dimmer |
| Switch Type | 1-Pole, 3-Way |
| Includes Wall Plate | Wall Plate Not Included |
| Neutral Required | Yes |
| Rated Frequency | 60 Hz |
| Dimming Method | ELV/Reverse Phase |
| Minimum Operating Temperature | 32 deg F |
| Load Rating @ 120V AC | 150W (CFL, LED), 400VA (ELV), 400W (Incandescent) |
| Number of Switches | 1 |
| Maximum Operating Temperature | 131 deg F |
| Load Rating @ 277V AC | Not Applicable |
| Dimming Type | Full Continuous Dimming |
| Illuminated | Yes |
| Series | IllumaTech |
| Load Rating | 400VA ELV, 400W Incandescent, 150W LED and CFL |
| Available Color Kits | Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T Red-R |
| Protection | Radio/TV Filter |
| Style Name | IllumaTech |
| Light | LED Locator |
| Preset | Yes |
| Load Type | Electronic Low Voltage, Incandescent, Dimmable LED, Dimmable CFL |
| Action | Standard ON/OFF |
| Wallplate | Order Separately |
| Type | Slide |
| Color Change Kit | IPKIT-00 Series |
| Frequency | 60 Hz |

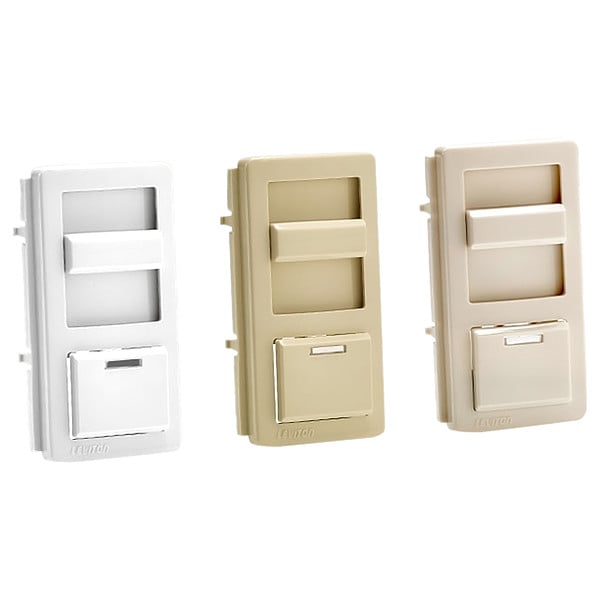

| Ordering Notes | Incl White, Ivory and Light Almond Color Kit |
| Standards and Certifications | CSA, UL |
| Package Quantity | 1 |
