El dimmer Leviton DSH08-10Z es perfecto para controlar la intensidad de la luz en tu hogar u oficina. Con capacidad para 277VAC, es ideal para iluminación fluorescente. Fácil de instalar y de gran durabilidad.
| Item - Motion Sensing and Dimming | Dimmer |
|---|---|
| Switch Style - Motion Sensing and Dimming | Slide with On/Off Rocker |

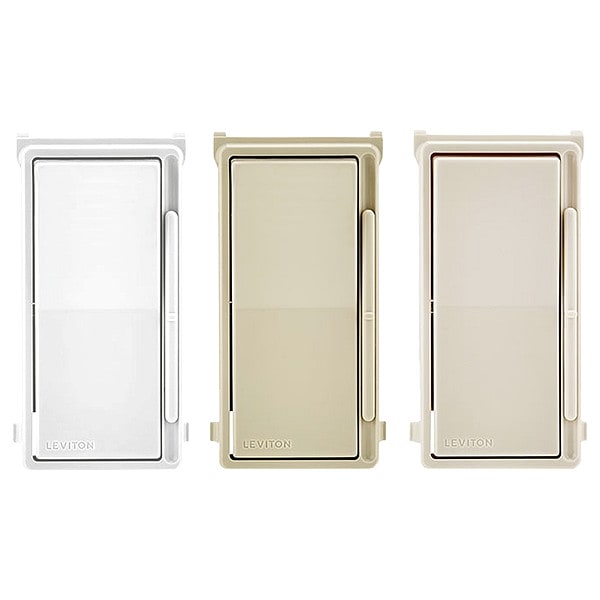

| Includes | White, Ivory and Light Almond Color Change Kit |
| Switch Type - Motion Sensing and Dimming | 1-Pole, 3-Way |
| Operating Voltage - Motion Sensing and Dimming | 277V AC |
| Max. Capacity @ 120VAC | 8A (Fluorescent) |
| Color - Motion Sensing and Dimming | White, Ivory, Light Almond |
| Ballast Type - Light Dimming | Eco-10 Ballasts |
| Description/Special Features | Built-in Radio/TV Interference Filter, Compact Housing, No Fins for Multi-Gang Installation, Slim |
| Lighting Technology | Fluorescent |
| Item | Lighting Dimmer |
| Wall Plate | Not included |
| Color | White, Ivory, Light Almond |
| Installation Location - Motion Sensor | Wall Switch Box |
| Voltage | 277 VAC |
| Standards | cCSAus, NOM |
| Switch Type | 1-Pole, 3-Way |
| Switch Style | Rocker On/Off, Mini-Slide Dimming |
| Maximum Operating Temperature | 131 deg F |
| Dimming Type | Full Continuous Dimming |
| Number of Switches | 1 |
| Includes Wall Plate | Wall Plate Not Included |
| Neutral Required | Yes |
| Illuminated | No |
| Series | Decora Slide |
| Load Rating @ 120V AC | 8.0A (Fluorescent) |
| Load Rating @ 277V AC | Not Applicable |
| Ballast Type | Eco-10 Ballast |
| Rated Frequency | 60 Hz |
| Minimum Operating Temperature | 32 deg F |
| Neutral | Required |
| Preset | Slide bar preserves desired lighting level |
| Standards and Certifications | NOM, cCSAus |
| Wallplate | Order Separately |
| Protection | Radio/TV Filter |
| Load Rating | 6 Amp |
| Available Colors | Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red |
| Style Name | Decora |
| Frequency | 60 Hz |
| Ordering Notes | Included White, Ivory and Light Almond Color Kit |
| Type | Dimmer |
| Load Type | Electronic Hi-lume or Eco-10 (ECO Series) Fluor |
| Action | Rocker Switch for ON/OFF, slide bar for lighting level control |
| Operating Voltage | 277V AC |
| Package Quantity | 1 |
