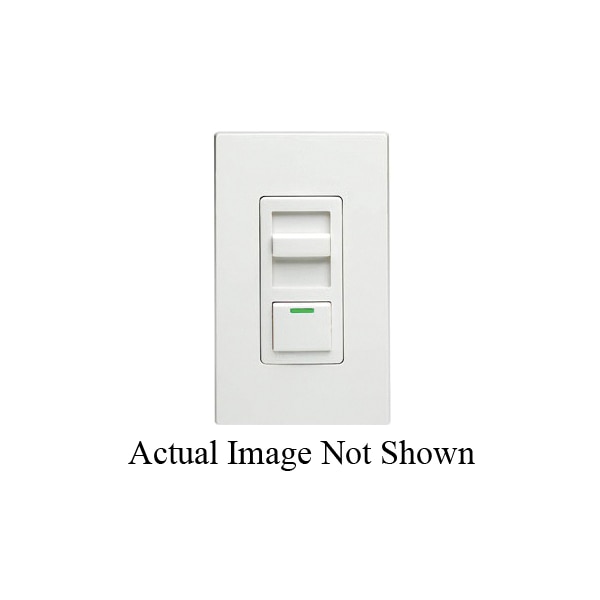

Dimmer Switch Illumatech Incand Dimm 1000W Wht Iv La
| Color | White, Ivory, Light Almond |
|---|---|
| Voltage | 120 VAC |
| Switch Type | Single-Pole & 3-Way |
| Standards and Certifications | CSA, UL |
| Wallplate | Order Separately |
| Available Color Kits | Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red |
| Light | LED Locator |
| Frequency | 60 Hz |
| Preset | Yes |
| Color Change Kit | IPKIT Series |
| Action | Standard ON/OFF |
| Load Rating | 1000W |
| Style Name | IllumaTech |
| Protection | Radio/TV Filter |
| Load Type | Incandescent |
| Type | Slide |
| Ordering Notes | Incl White, Ivory and Light Almond Color Kit |
| Application | Commercial |
| Length | 2.81 in |
| Power Rating | 1000 W |
| Temperature Rating | 32 to 130 °F |
| Mounting Type | Wall |
| Standard | UL Listed (E-31373), CSA Certified (LR-3413) |
| Width | 2-1/2 in |
| Operating Temperature | 32 to 130 deg F |
| Dimensions | 4.15 in H x 2.12 in W x 1.41 in D |
| Load | 1000 WTT |
| Control | Preset Slide |
| Wattage | 1,000 W |
| Height | 4.44 in |
| Environmental Conditions | 20 to 90 % (Relative Humidity Non-Condensing);Flammability (Rated V-2 per UL94) |
| Number of Poles | 1 |
| Package Quantity | 1 |
