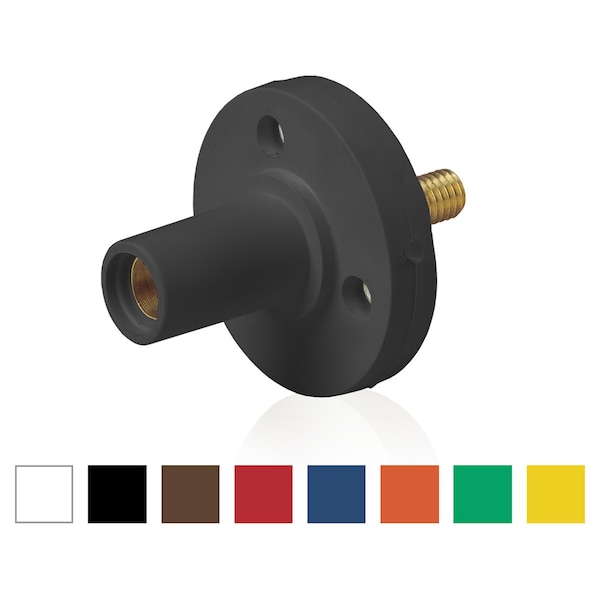

Este ensamblaje de conector eléctrico hembra de la Serie 15 de Leviton es ideal para aplicaciones de alto amperaje. Diseñado para proporcionar una conexión segura y confiable en entornos industriales.
| Type | 15 Series Single Pole |
|---|---|
| Series | 15 Series |
| Voltage Rating | 600 V |
| NEMA Rating | NEMA 3R |
| Color | Brown |
| Standards | UL 1691CSA C22.2 No. 1691 |
| Length | 5 in |
| Height | 4-3/8 in |
| Width | 7-1/4 in |
| Number of Poles | 1 |
| Contact Material | Brass |
| Wire Size | 8 to 2 AWG |
| Housing Material | Santoprene TPV, Neoprene Rubber |
| Dimensions | 1.86 in Dia x 2.63 in L |
| Mounting Type | Panel |
| Connection Type | Threaded Stud |
| Amperage Rating | 150 A |
| Package Quantity | 1 |
