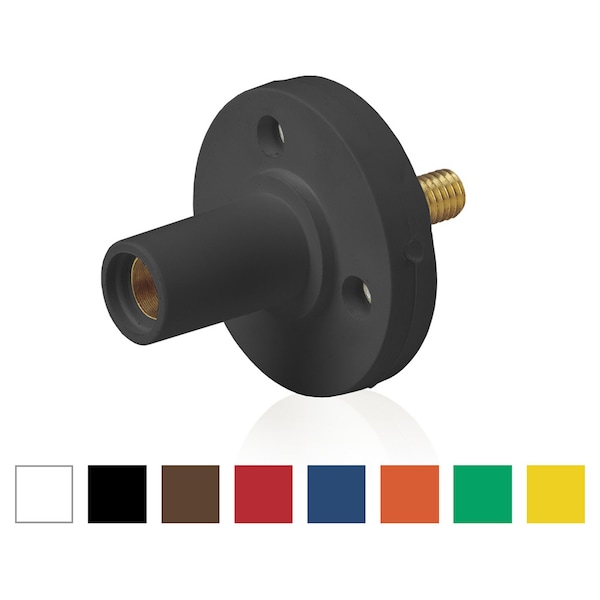

Ensamble de Conector Eléctrico 15 Series Hembra Recep 150A Amarillo de alta calidad y durabilidad.
| Type | Receptacle |
|---|---|
| Series | 15 Series |
| Terminal Connection | Threaded Stud |
| Current Rating | 150 A |
| Voltage Rating | 600 V |
| NEMA Rating | NEMA 3R |
| Standards | 1691 |
| Cable Range | 8 to 2 AWG |
| Color | Yellow |
| Length | 5 in |
| Height | 4-3/8 in |
| Width | 7-1/4 in |
| Dimensions | 1.86 in Dia x 2.63 in L |
| Housing Material | Santoprene TPV, Neoprene Rubber |
| Amperage Rating | 150 A |
| Contact Material | Brass |
| Wire Size | 8 to 2 AWG |
| Mounting Type | Threaded, Panel |
| Number of Poles | 1 |
| Package Quantity | 1 |
