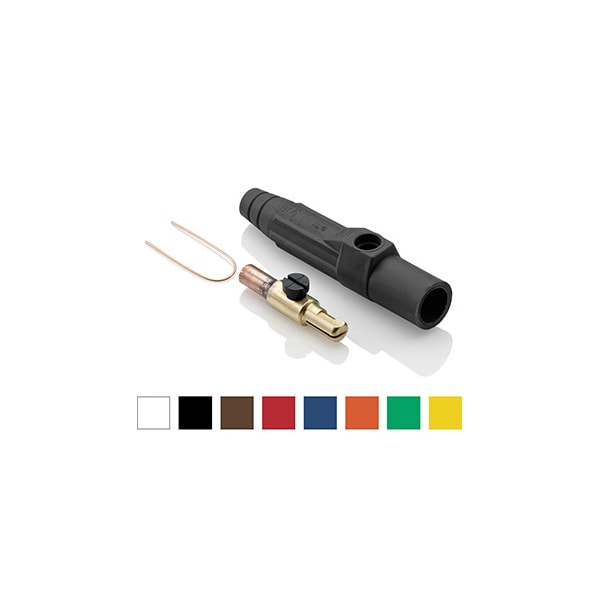

Conector eléctrico macho de la serie 15 de alta calidad y resistencia, ideal para aplicaciones industriales. Fabricado por Leviton, líder en tecnología eléctrica.
| Type | 1-Pole Cam Type Taper Nose |
|---|---|
| Series | 15 Series |
| Terminal Connection | Crimped |
| Current Rating | 140 A |
| Voltage Rating | 12 to 24 |
| NEMA Rating | NEMA 3R |
| Standards | 1691 |
| Cable Range | 8 to 4 AWG |
| Color | Orange |
| Length | 6 in |
| Width | 8 in |
| Height | 4-3/8 in |
| Application | Industrial Applications |
| Wire Size | 8 to 4 |
| Mounting Type | Threaded |
| Amperage Rating | 140 |
| Contact Material | Brass |
| Standard | UL-1691 |
| Dimensions | 0.94 in Dia x 4.46 in L |
| Housing Material | Santoprene TPV |
| Package Quantity | 1 |
