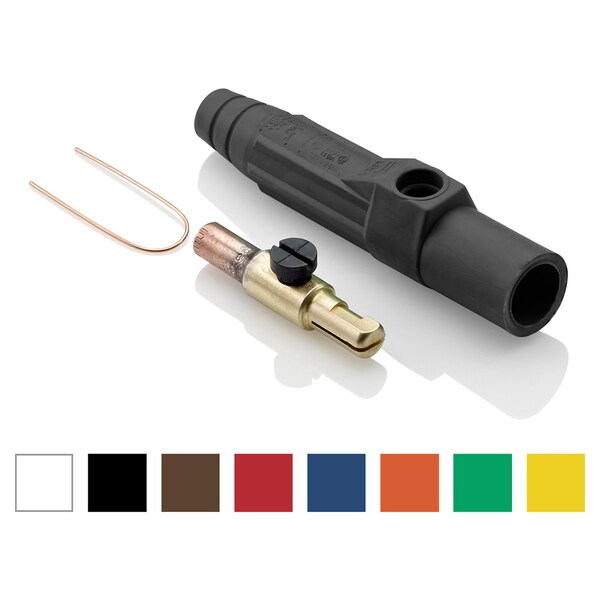

Conector eléctrico de ensamble macho de la Serie 15 con capacidad de 140A en color blanco. Ideal para aplicaciones eléctricas industriales y comerciales.
| Type | 1-Pole Cam Type Taper Nose |
|---|---|
| Series | 15 Series |
| Terminal Connection | Crimped |
| Current Rating | 140 A |
| Voltage Rating | 12 to 24 V |
| NEMA Rating | NEMA 3R |
| Cable Range | 8 to 4 AWG |
| Color | White |
| Standards | 1691 |
| Width | 8 in |
| Application | Entertainment Such as Those Found in Carnivals and Theme Parks Applications |
| Height | 4-3/8 in |
| Length | 6 in |
| Mounting Type | Threaded |
| Temperature Rating | 86 |
| Number of Poles | 1 |
| Amperage Rating | 140 A |
| Wire Size | 8 to 4 |
| Dimensions | 0.94 in Dia x 4.46 in L |
| Housing Material | Santoprene TPV |
| Contact Material | Brass |
| Package Quantity | 1 |
