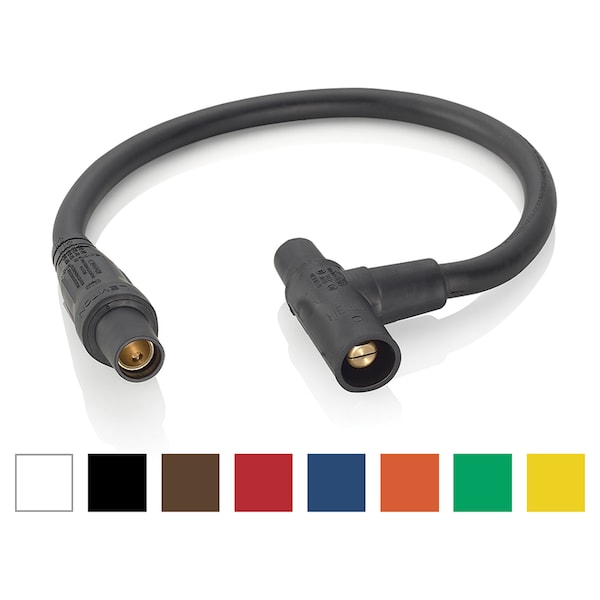

ELECTRICAL CONNECTOR ASSEMBLY 16 SERIES F-F-M TAPPING TEE BLACK
| Length | 10.88 in |
|---|---|
| Width | 7-3/4 in |
| Wire Size | 4/0 |
| Type | Cam Type Soft Taper Nose |
| Housing Material | TPV |
| Color | Black |
| Max. Voltage | 600 Volt |
| Application | For temporary and semi-permanent power distribution applications |
| Height | 5.62 in |
| Style Name | Soft Tapping Tee |
| UL | 1691, 508 - 35k A / 600V Short Circuit Current Rating |
| NEMA Rating | Type 3R |
| CSA Standard | 1691 |
| Gender | Female-Female/Male |
| Contacts | Brass |
| Max. Amperage | 400 A |
| Insulator | Santroprene TPV |
| Voltage Rating | 600 V |
| Standard | UL listed |
| Connection Type | Female x Male x Female |
| Amperage Rating | 400 A |
| Specifications | 1-Pole, NEMA 3R, 24 in L Cable |
| Series | 16 Series |
| Number of Poles | 1 |
| Package Quantity | 1 |
