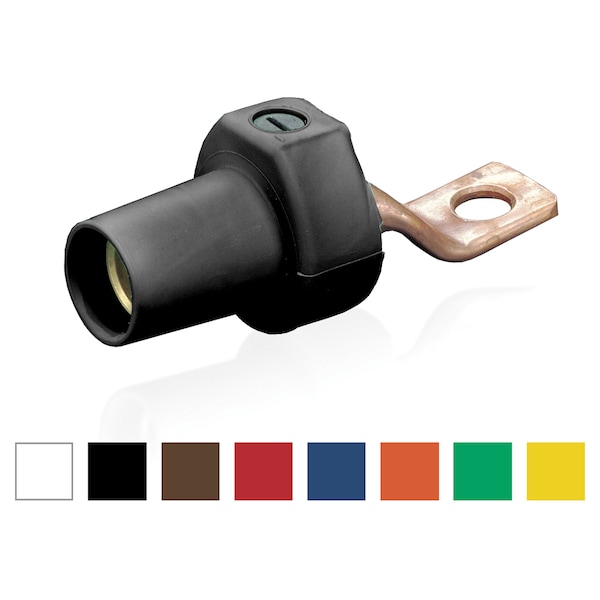

Ensamble de conector eléctrico 16 Series con conector hembra Barra Colectora Desconectado Negro - 16F22-UE de Leviton.
| Type | 1-Pole Cam Type Offset |
|---|---|
| Series | 16 Series |
| Terminal Connection | Terminal |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600 V |
| NEMA Rating | Type 3R |
| Color | Black |
| Conductor Material | Brass |
| Cable Range | 2 to 4/0 AWG |
| Height | 7-1/4 in |
| Length | 5 in |
| Width | 7-1/4 in |
| Housing Material | Santoprene TPV |
| Mounting Type | Busbar |
| Dimensions | 1.86 in W |
| Amperage Rating | 400 A |
| Wire Size | 2 to 4/0 |
| Number of Poles | 1 |
| Package Quantity | 1 |
