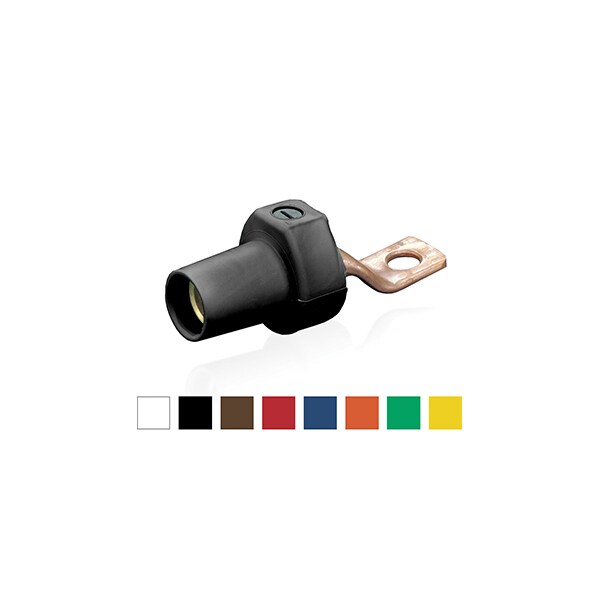

Este ensamble de conector eléctrico de la serie 16 de Leviton es ideal para conexiones hembra, con barra de bus desconectado en color marrón. Cumple con altos estándares de calidad y seguridad.
| Type | Cam-Type |
|---|---|
| Terminal Connection | Terminal |
| Male/Female | Female |
| Current Rating | 400 A |
| NEMA Rating | Type 3R |
| Cable Range | 2 to 4/0 AWG |
| Conductor Material | Brass |
| Color | Brown |
| Height | 7-1/4 in |
| Width | 7-1/4 in |
| Length | 5 in |
| Application | Indoor/Outdoor, Sports, Entertainment and Movie Industry, Theme Parks and Carnival Equipment, C |
| Standard | UL 1691 |
| Number of Poles | 1 |
| Package Quantity | 1 |
