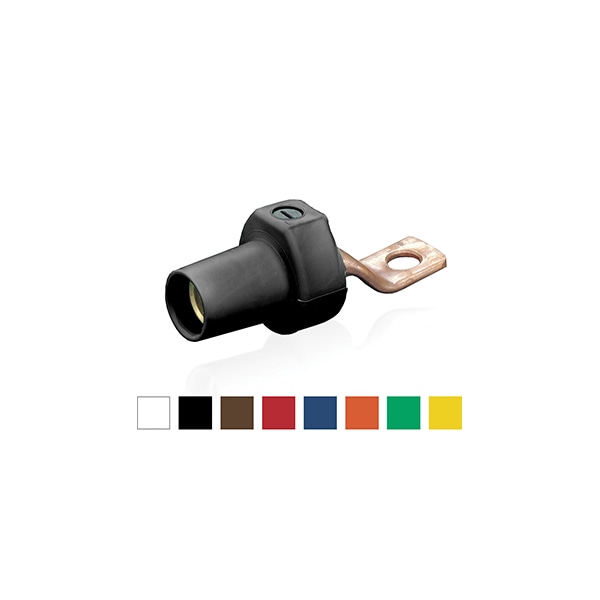

El Ensamble de Conector Eléctrico 16 Series Hembra Bus Bar Off Rojo es perfecto para tus necesidades eléctricas. Fabricado con los más altos estándares de calidad para brindarte un rendimiento seguro y confiable.
| Type | Cam Type Offset Taper Nose |
|---|---|
| Series | 16 Series |
| Terminal Connection | Terminal |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600 |
| NEMA Rating | Type 3R |
| Color | Red |
| Cable Range | 2 to 4/0 AWG |
| Conductor Material | Brass |
| Width | 7-1/4 in |
| Height | 7-1/4 in |
| Length | 5 in |
| Application | Indoor/Outdoor, Sports, Entertainment and Movie Industry, Theme Parks and Carnival Equipment, C |
| Specifications | Copper Wire Strain Relief |
| Housing Material | TPV |
| Dimensions | 1.86 in W |
| Wire Size | 2 to 4/0 |
| Number of Poles | 1 |
| Mounting Type | Busbar |
| Amperage Rating | 400 |
| Contact Material | Brass |
| Standard | UL 1691 |
| Package Quantity | 1 |
