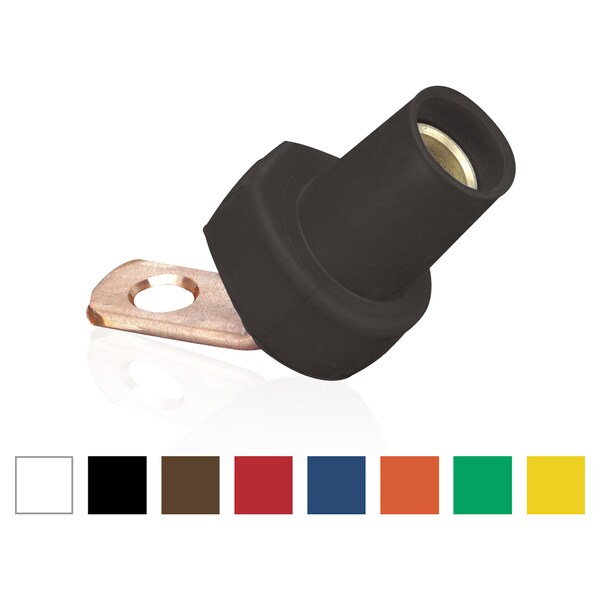

El Ensamble de Conector Eléctrico Serie 16 Hembra Barra de Bus Amarillo de Leviton es una solución confiable y segura para conectar componentes eléctricos. Fabricado con materiales de alta calidad para garantizar un rendimiento óptimo.
| Type | 16 Series Single Pole Cam |
|---|---|
| Terminal Connection | Terminal |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600 V |
| NEMA Rating | Type 3R |
| Color | Yellow |
| Conductor Material | Brass |
| Cable Range | 2 to 4/0 AWG |
| Width | 7-1/4 in |
| Height | 7-1/4 in |
| Length | 5 in |
| Amperage Rating | 400 A |
| Number of Poles | 1 |
| Package Quantity | 1 |
