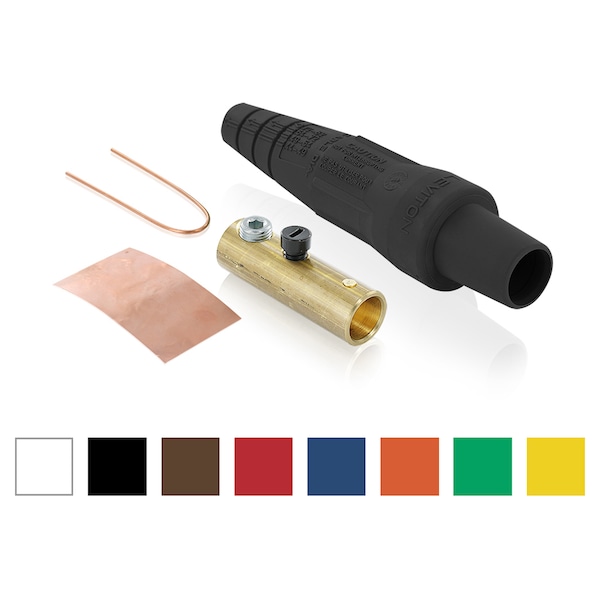

Ensamble de conector eléctrico hembra de la Serie 16, para enchufe #2 - 2 0 Blanco, ideal para aplicaciones eléctricas.
| Type | FEMALE DETACHABLE PLU |
|---|---|
| Terminal Connection | Single Set Screw |
| Male/Female | Female |
| Current Rating | 300 A |
| Voltage Rating | 600 V |
| NEMA Rating | Type 3R |
| Cable Range | 2 to 2/0 AWG |
| Mounting | Screw Mount |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Conductor Material | Brass |
| Color | White |
| Application | Commercial and Industrial Applications |
| Length | 8 in |
| Height | 7-1/4 in |
| Width | 11 in |
| Number of Poles | 1 |
| Amperage Rating | 300 A |
| Package Quantity | 1 |
