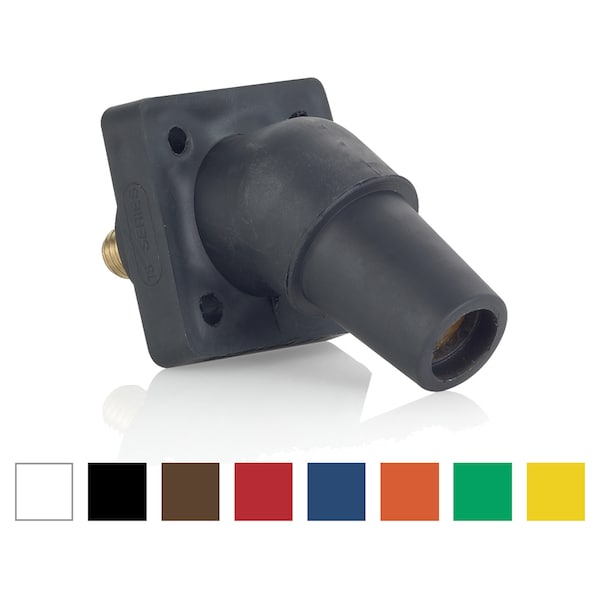

Este ensamble de conector eléctrico de la Serie 16 hembra REC en color rojo es perfecto para tus necesidades eléctricas. Fabricado con materiales de alta calidad, garantiza un rendimiento óptimo y una larga durabilidad.
| Type | Female |
|---|---|
| Series | 16 Series |
| Terminal Connection | Threaded Stud |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600 V |
| NEMA Rating | Type 3R |
| Conductor Material | Brass |
| Color | Red |
| Cable Range | 2 to 4/0 AWG |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Height | 7-1/4 in |
| Application | Sports, Entertainment and Movie Industry, Welding and Construction Sites, Theme Parks and Carni |
| Width | 10 in |
| Length | 5-1/2 in |
| Number of Poles | 1 |
| Dimensions | 2-1/4 in L x 4.27 in W |
| Amperage Rating | 400 A |
| Wire Size | 2 to 4/0 |
| Housing Material | Santoprene TPV |
| Mounting Type | Panel |
| Package Quantity | 1 |
