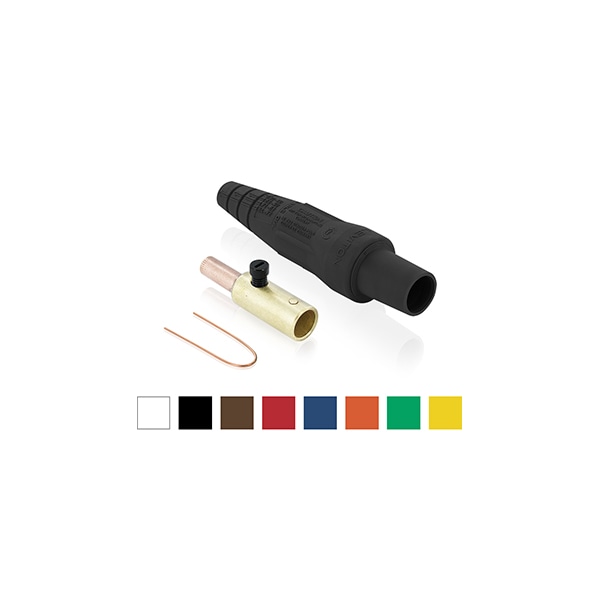

Este ensamble de conector eléctrico de la Serie 16 Fml Plg #2 - #1 Rojo es ideal para tus proyectos de conexión eléctrica. Fabricado con materiales de alta calidad, garantiza un rendimiento óptimo y duradero.
| Type | 1-Pole Cam Type Taper Nose While-in-Use |
|---|---|
| Series | 16 Series |
| Terminal Connection | Crimped |
| Male/Female | Female |
| Current Rating | 220 A |
| Voltage Rating | 600 |
| NEMA Rating | Type 3R |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Color | Red |
| Housing Material | Santoprene TPV |
| Conductor Material | Brass |
| Cable Range | 2 to 1 AWG |
| Height | 7-1/4 in |
| Wire Size | 2 to 1 |
| Application | Industrial Applications |
| Length | 8 in |
| Width | 11 in |
| Standard | UL 1691 |
| Dimensions | 1.72 in Dia x 6.85 in L |
| Number of Poles | 1 |
| Amperage Rating | 220 |
| Package Quantity | 1 |
