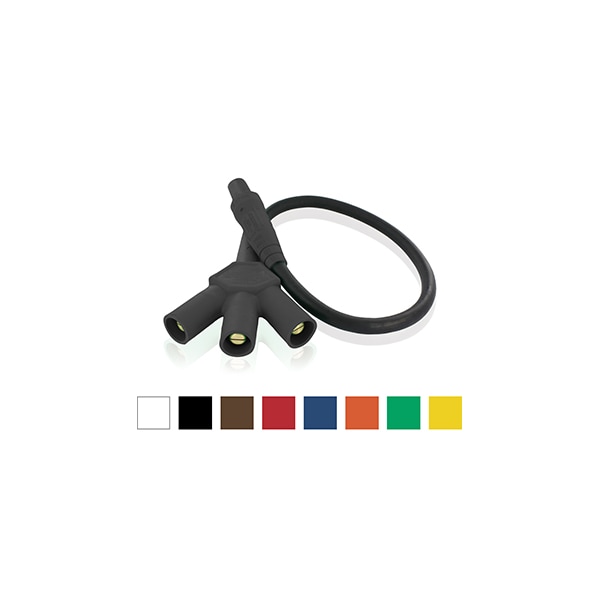

Este Ensamble de Conector Eléctrico de la Serie 16 cuenta con conexión hembra-macho trífase en color verde. Ideal para aplicaciones eléctricas industriales.
| Type | Cam Type Soft Taper Nose |
|---|---|
| Series | 16 Series |
| Male/Female | 1 Feamale 3-male |
| Current Rating | 400 A |
| Voltage Rating | 600 |
| NEMA Rating | Type 3R |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Housing Material | TPV |
| Material | Santroprene TPV |
| Color | Green |
| Conductor Material | Brass |
| Single Pole Device Style | Soft 3-Fer |
| Wire Size | 4/0 |
| Width | 7-3/4 in |
| Application | Industrial Applications |
| Length | 10.88 in |
| Height | 5.62 in |
| Dimensions | 6.56 in H x 6.56 in W |
| Connection Type | Female x Male x Male x Male |
| Number of Poles | 1 |
| Amperage Rating | 400 |
| Specifications | 1-Pole, NEMA 3R, 24 in L Cable |
| Package Quantity | 1 |
