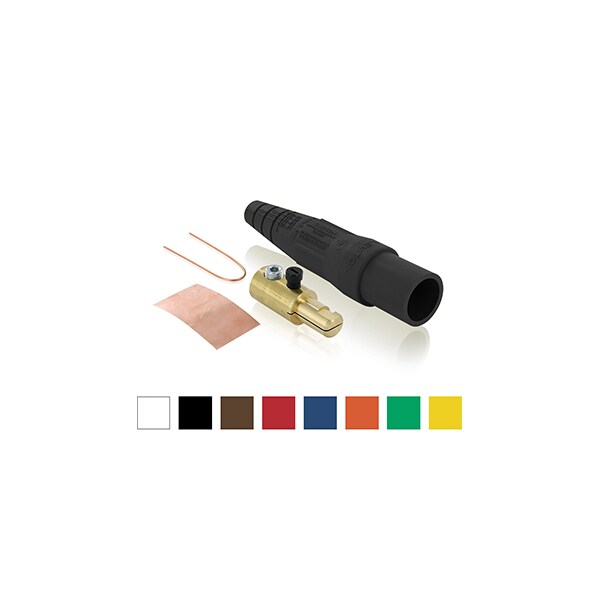

El Ensamble de conector eléctrico macho de la serie 16 de Leviton 2.0 - 4.0 naranja es una solución confiable para sus necesidades de conexión eléctrica.
| Type | 1-Pole Cam Type Taper Nose While-in-Use |
|---|---|
| Series | 16 Series |
| Terminal Connection | Single Set Screw |
| Male/Female | Male |
| Current Rating | 400 A |
| Voltage Rating | 12 to 24 |
| NEMA Rating | Type 3R |
| Housing Material | Santoprene TPV |
| Color | Orange |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Conductor Material | Brass |
| Cable Range | 2/0 to 4/0 AWG |
| Application | For power distribution applications such as construction sites, mining operations, welding, cel |
| Width | 11 in |
| Height | 7-1/4 in |
| Wire Size | 2/0 to 4/0 |
| Length | 8 in |
| Mounting Type | Threaded |
| Amperage Rating | 400 |
| Temperature Rating | 86 |
| Number of Poles | 1 |
| Dimensions | 1.72 in Dia x 7.01 in L |
| Package Quantity | 1 |
