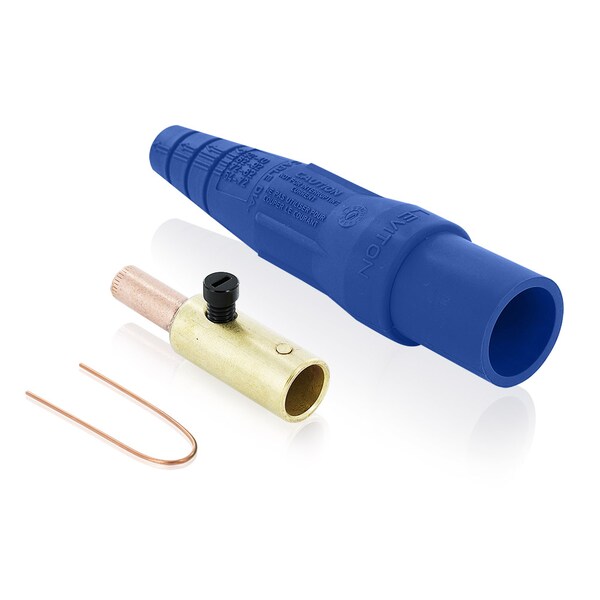

Este ensamble de conector eléctrico macho de la Serie 16 de Leviton en color azul es ideal para aplicaciones de 3.0 a 4.0 amperios. Fabricado con materiales de alta calidad para garantizar un rendimiento óptimo.
| Type | 1-Pole Cam Type Taper Nose While-in-Use |
|---|---|
| Series | 16 Series |
| Terminal Connection | Crimped |
| Male/Female | Male |
| Current Rating | 400 A |
| Voltage Rating | 600 |
| NEMA Rating | Type 3R |
| Color | Blue |
| Housing Material | Santoprene TPV |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Cable Range | 3/0 to 4/0 AWG |
| Conductor Material | Brass |
| Length | 8 in |
| Width | 11 in |
| Height | 7-1/4 in |
| Wire Size | 3/0 to 4/0 |
| Application | Industrial Applications |
| Dimensions | 1.72 in Dia x 7.01 in L |
| Standard | UL 1691 |
| Amperage Rating | 400 |
| Number of Poles | 1 |
| Package Quantity | 1 |
