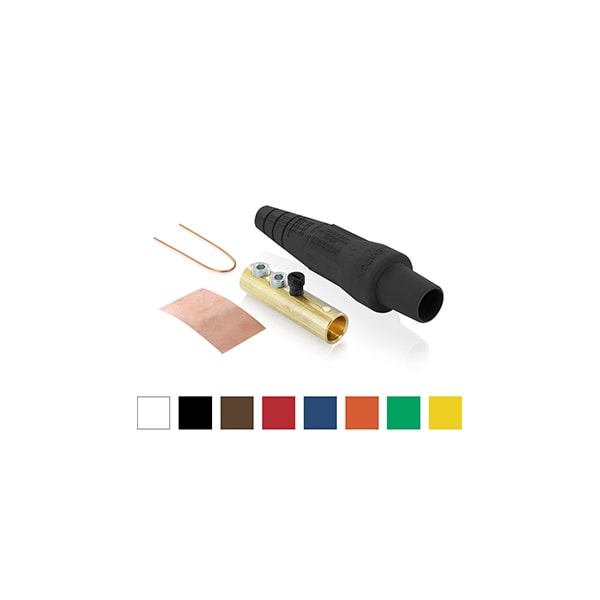

ELECTRICAL CONNECTOR ASSEMBLY 16 SRS FML PLG #2 - 2 0 2 S.S. YLW BULK
| Length | 11-1/8 in |
|---|---|
| Contact Material | Brass |
| Type | 1-Pole Cam Type Taper Nose While-in-Use |
| Color | Yellow |
| Housing Material | Santoprene TPV |
| Wire Size | 2 to 2/0 |
| Height | 8-7/8 in |
| Application | Industrial Applications |
| Connection Type | Double Set Screw |
| Number of Poles | 1 |
| Series | 16 Series |
| Dimensions | 1.72 in Dia x 6.85 in L |
| Amperage Rating | 300 |
| Number of Conductors | 1 |
| Specifications | 1-Conductor |
| Standard | UL: 1691 |
| Voltage Rating | 600 |
| Mounting Type | Threaded |
| NEMA Rating | NEMA 3R |
| Package Quantity | 1 |
