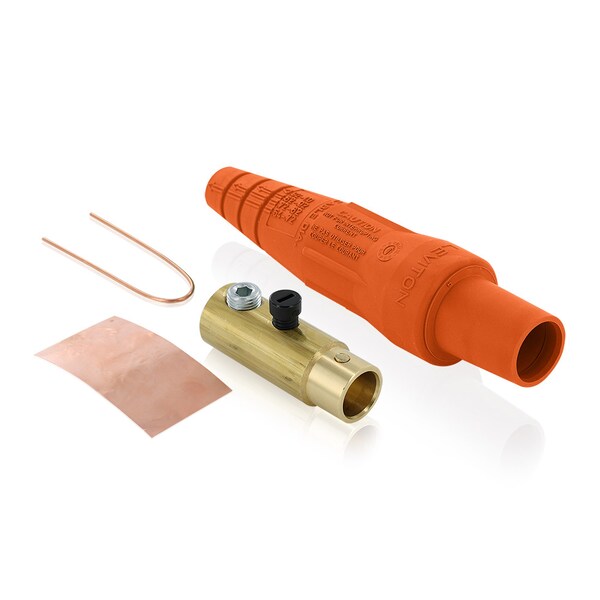

Conjunto de conector eléctrico para plug 16 Srs 2/0 - 4/0 Awg Org, ideal para aplicaciones eléctricas de alta potencia. Fabricado con materiales de alta calidad.
| Type | Cam-Type |
|---|---|
| Terminal Connection | Single Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| NEMA Rating | Type 3R |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Color | Orange |
| Conductor Material | Brass |
| Cable Range | 2/0 to 4/0 AWG |
| Application | Industrial Applications |
| Height | 7-1/4 in |
| Length | 8 in |
| Width | 11 in |
| Standard | UL 1691 |
| Number of Poles | 1 |
| Package Quantity | 1 |
