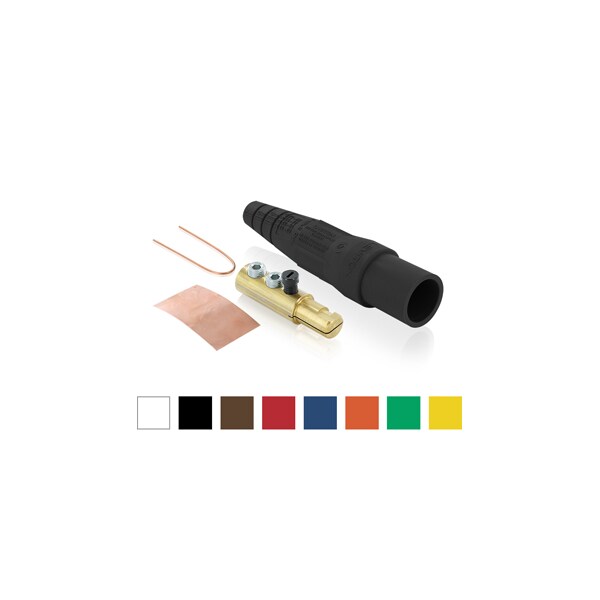

Este ensamble de conector eléctrico macho de la Serie 16 de Leviton es ideal para tamaños de cable #6 a #2 AWG en color naranja. Fabricado con los más altos estándares de calidad para garantizar un rendimiento confiable en cualquier aplicación eléctrica.
| Type | 1-Pole Cam Type Taper Nose While-in-Use |
|---|---|
| Series | 16 Series |
| Terminal Connection | Double Set Screw |
| Male/Female | Male |
| Current Rating | 190 A |
| Voltage Rating | 12 to 24 |
| NEMA Rating | Type 3R |
| Housing Material | Santoprene TPV |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Color | Orange |
| Cable Range | #6 to #2 AWG |
| Conductor Material | Brass |
| Length | 8 in |
| Wire Size | 6 to 2 |
| Width | 11 in |
| Height | 7-1/4 in |
| Application | Motor and Generator Splices, Mining and Construction Sites, Commercial and Navy Shipbuilding an |
| Dimensions | 1.72 in Dia x 7.01 in L |
| Standard | UL 1691 |
| Amperage Rating | 190 |
| Number of Poles | 1 |
| Mounting Type | Threaded |
| Package Quantity | 1 |
