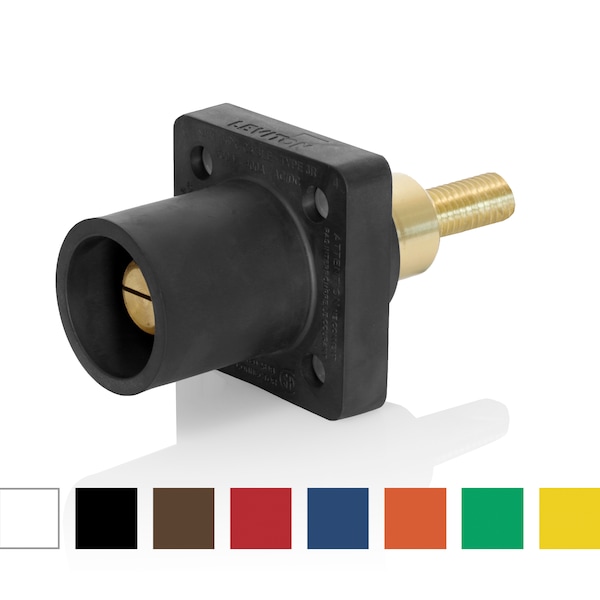

El Ensamble de Conector Eléctrico 16 SRS ML REC TPR 0.75IN SHLD 400A BRN de Leviton es ideal para aplicaciones de alta potencia. Con un diseño resistente y seguro, este conector es fácil de instalar y proporciona una conexión confiable. Cumple con los estándares de seguridad y calidad.
| Type | 90 deg Cam-Type Taper Nose |
|---|---|
| Series | 16 Series |
| Terminal Connection | Threaded Stud |
| Male/Female | Male |
| Current Rating | 400 A |
| Voltage Rating | 600 |
| NEMA Rating | Type 3R |
| Cable Range | 2 to 4/0 AWG |
| Color | Brown |
| Conductor Material | Brass |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Width | 10 in |
| Length | 5-1/2 in |
| Application | Industrial, Sports, Entertainment and Movie Industry, Theme Parks and Carnival Equipment, Conce |
| Height | 7-1/4 in |
| Housing Material | Santoprene TPV |
| Amperage Rating | 400 |
| Dimensions | 2.28 in H x 2.28 in W |
| Number of Poles | 1 |
| Mounting Type | Panel |
| Connection Type | 1-1/4 in Male Threaded Stud |
| Specifications | 1-Conductor |
| Wire Size | 2 to 4/0 |
| Standard | UL: 1691 |
| Number of Conductors | 1 |
| Package Quantity | 1 |
