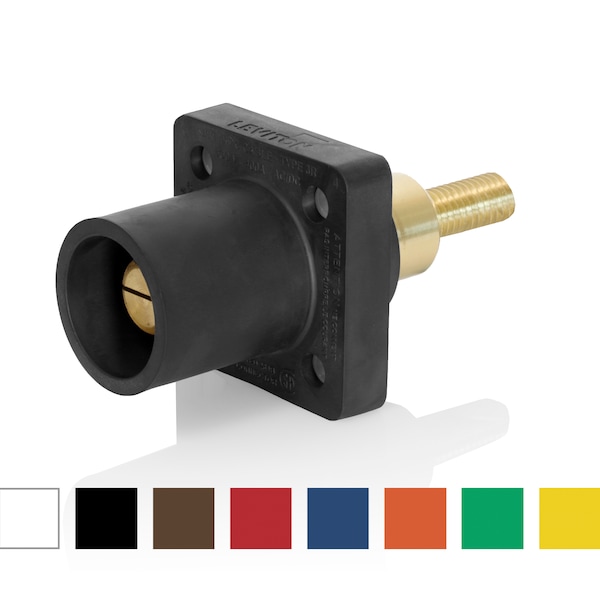

El ensamble de conector eléctrico 16 SRS ML REC TPR 0.75IN SHLD 400A WHT de Leviton es ideal para aplicaciones de alta potencia. Conecta de forma segura y confiable cables de hasta 400A de corriente. Fabricado con material resistente para una larga vida útil.
| Type | Receptacle |
|---|---|
| Terminal Connection | Threaded Stud |
| Male/Female | Male |
| Current Rating | 400 A |
| NEMA Rating | Type 3R |
| Mounting | Panel |
| Cable Range | 2 to 4/0 AWG |
| Conductor Material | Brass |
| Standards | 1691, 508 to 35k A / 600V Short Circuit Current Rating |
| Color | White |
| Height | 7-1/4 in |
| Length | 5-1/2 in |
| Width | 10 in |
| Application | Industrial, Sports, Entertainment and Movie Industry, Theme Parks and Carnival Equipment, Conce |
| Number of Conductors | 1 |
| Standard | UL: 1691 |
| Number of Poles | 1 |
| Package Quantity | 1 |
