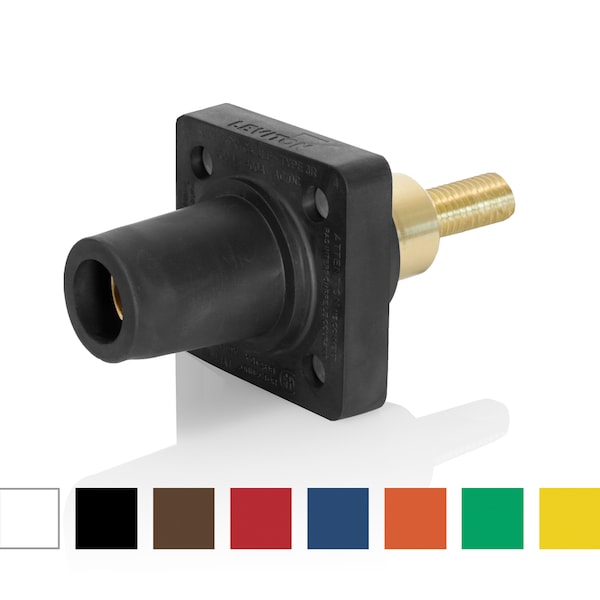

Este ensamble de conector eléctrico de la serie 16 de Leviton está diseñado para soportar hasta 600V y 400A. Cuenta con un recubrimiento de goma y está fabricado con materiales de la más alta calidad para garantizar un rendimiento óptimo y duradero.
| Type | 90 deg Cam-Type Taper Nose |
|---|---|
| Series | 16 Series |
| Voltage Rating | 600 |
| NEMA Rating | NEMA 3R |
| Color | Yellow |
| Application | Industrial, Sports, Entertainment and Movie Industry, Theme Parks and Carnival Equipment, Conce |
| Length | 5-1/2 in |
| Height | 7-1/4 in |
| Width | 10 in |
| Specifications | 1-Conductor |
| Housing Material | Santoprene TPV |
| Contact Material | Brass |
| Dimensions | 2.28 in H x 2.28 in W |
| Amperage Rating | 400 |
| Connection Type | 1-1/4 in Female Threaded Stud |
| Standard | UL: 1691 |
| Number of Poles | 1 |
| Mounting Type | Panel |
| Wire Size | 2 to 4/0 |
| Number of Conductors | 1 |
| Package Quantity | 1 |
