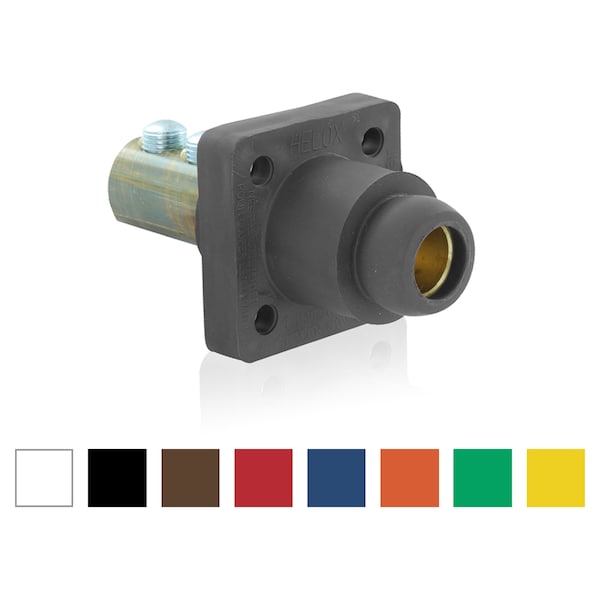

El ensamblaje de conector eléctrico de la Serie 18 Fml Recp 90° 2 0-4 0 Amarillo de Leviton ofrece una solución confiable y duradera para tus necesidades de conexión eléctrica. Con un diseño resistente y eficiente, este ensamblaje garantiza un rendimiento óptimo en cualquier entorno.
| Type | Female |
|---|---|
| Series | 18 Series |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600 |
| NEMA Rating | NEMA 3R |
| Standards | File 152105 |
| Cable Range | 2/0 to 4/0 AWG |
| Color | Yellow |
| Conductor Material | Brass |
| Length | 8 in |
| Application | Commercial, Navy Shipbuilding, Sports, Entertainment, Movie Industry, Welding, Construction Sit |
| Height | 7-1/4 in |
| Width | 11 in |
| Amperage Rating | 400 |
| Mounting Type | Panel |
| Wire Size | 2 to 4/0 |
| Dimensions | 2.28 in L x 4.04 in W |
| Housing Material | Santoprene TPV |
| Package Quantity | 1 |
