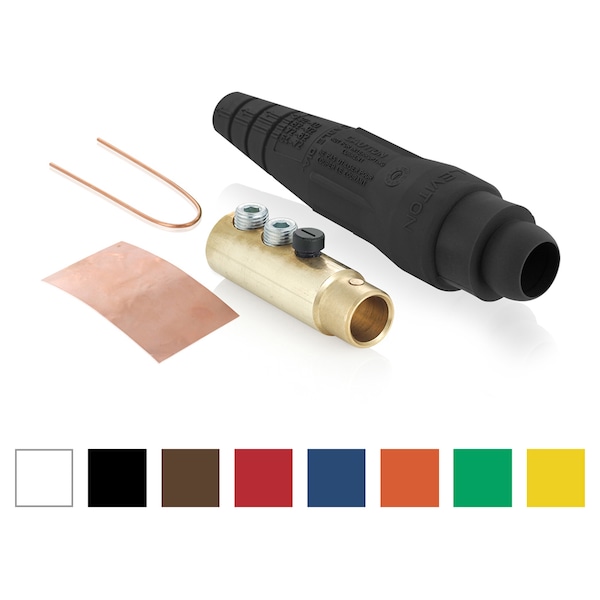

Este ensamble de conector eléctrico Leviton tiene una hembra para desconectar con punta de bola, diseñada para cables de 1/0-4/0. Es perfecto para aplicaciones industriales y comerciales que requieren una conexión segura y confiable.
| Type | Ball Nose Cam Type |
|---|---|
| Series | 18 Series |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 400 A |
| Voltage Rating | 600 |
| NEMA Rating | NEMA 3R |
| Conductor Material | Brass |
| Cable Range | 2/0 to 4/0 AWG |
| Standards | File 152105 |
| Color | Brown |
| Length | 9-1/4 in |
| Application | Motor, Generator Splices, Mining, Construction Sites, Commercial, Navy Shipbuilding, Repair, Ot |
| Height | 7-1/4 in |
| Standard | UL 1691 |
| Dimensions | 1.72 in Dia x 6.77 in L |
| Amperage Rating | 400 |
| Mounting Type | Threaded |
| Wire Size | 2/0 to 4/0 |
| Housing Material | Santoprene TPV |
| Number of Poles | 1 |
| Package Quantity | 1 |
