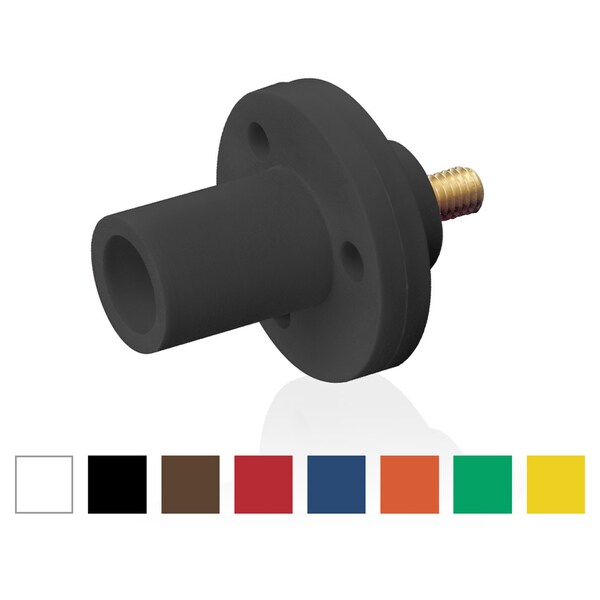

Este ensamble de conector eléctrico Leviton BR M PNL REC TAP NOSE THRD STUD #8-2AWG es ideal para diversas aplicaciones electrónicas. Cuenta con una construcción duradera y confiable para garantizar un rendimiento óptimo en cualquier entorno.
| Type | Cam Type Male Taper Nose |
|---|---|
| Series | 15 Series |
| Terminal Connection | Threaded Stud |
| Current Rating | 150 A |
| Voltage Rating | 600 V |
| NEMA Rating | NEMA 3R |
| Standards | 1691 |
| Cable Range | 8 to 2 AWG |
| Color | Brown |
| Height | 4-3/8 in |
| Length | 6-1/4 in |
| Application | Commercial, Navy Shipbuilding, Sports, Entertainment, Movie Industry, Welding, Construction Sit |
| Amperage Rating | 150 A |
| Housing Material | Santoprene TPV, Neoprene Rubber |
| Contact Material | Brass |
| Wire Size | 8 to 2 |
| Mounting Type | Panel |
| Dimensions | 1.86 in Dia x 2.63 in L |
| Package Quantity | 1 |
