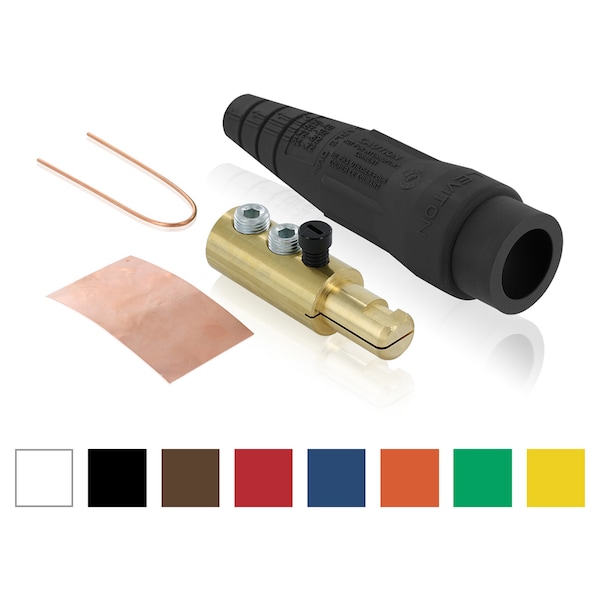

Conjunto de conector eléctrico macho desmontable Bu de nariz de bola #2/0-4/0, ideal para conexiones eléctricas seguras y confiables.
| Type | Ball Nose Cam Type |
|---|---|
| Series | 18 Series |
| Terminal Connection | Double Set Screw |
| Male/Female | Male |
| Current Rating | 400 A |
| Voltage Rating | 600 V |
| NEMA Rating | NEMA 3R |
| Conductor Material | Brass |
| Cable Range | 2/0 to 4/0 AWG |
| Standards | File 152105 |
| Color | Blue |
| Height | 7-1/4 in |
| Application | Commercial Applications |
| Length | 8 in |
| Width | 11 in |
| Dimensions | 1.72 in Dia x 6.16 in L |
| Housing Material | Santoprene TPV |
| Wire Size | 1/0 to 4/0 |
| Number of Poles | 1 |
| Mounting Type | Threaded |
| Amperage Rating | 400 A |
| Package Quantity | 1 |
