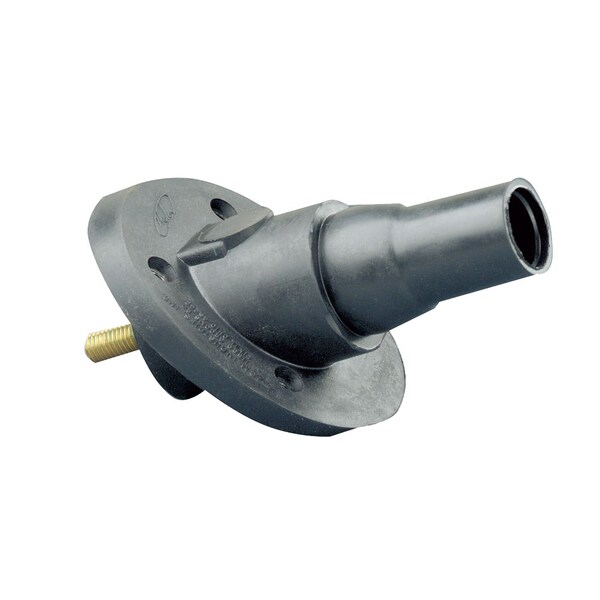

Electrical Connector Assembly Eb 30D Fem Pnl Rec Ball Nose 250-750Mcm
| Type | Receptacle |
|---|---|
| Terminal Connection | Threaded Stud |
| Male/Female | Female |
| Current Rating | 690 A |
| Voltage Rating | 600 V |
| Material | Neoprene |
| Color | Black |
| Cable Range | 250 to 750MCM |
| Application | Sports, Entertainment and Movie Industry, Welding and Construction Sites, Theme Parks and Carni |
| Width | 12 in |
| Length | 9 in |
| Height | 4-1/2 in |
| Number of Poles | 1 |
| Amperage Rating | 690 A |
| Package Quantity | 1 |
