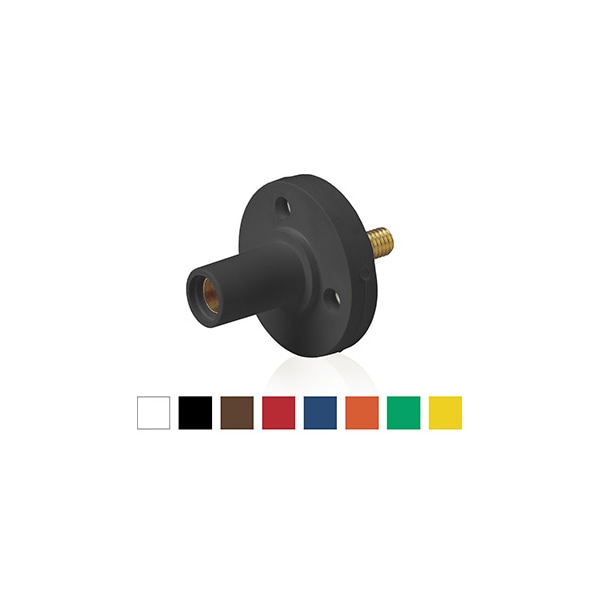

ELECTRICAL CONNECTOR ASSEMBLY EB F PNL REC TAP NOSE 3/4THRD STUD #8-2
| Length | 5 in |
|---|---|
| Width | 7-1/4 in |
| Contact Material | Brass |
| Wire Size | 8 to 2 |
| Max. Voltage | 600 Volt |
| Color | Black |
| Type | Cam Type Female While-in-Use |
| Housing Material | Santroprene TPV |
| Application | Motor, Generator Splices, Mining, Construction Sites, Commercial, Navy Shipbuilding, Repair, Ot |
| Height | 4-3/8 in |
| CSA | C22.2 No 1691 |
| Cable Range | 8-2 AWG |
| UL | 1691 |
| Connection Type | Threaded Stud |
| Max. Amperage | 150 A |
| NEMA Rating | NEMA 3R |
| Voltage Rating | 600 |
| Dimensions | 1.86 in Dia x 2.63 in L |
| Amperage Rating | 150 |
| Series | 15 Series |
| Mounting Type | Panel |
| Specifications | 3/4 in L Threaded Stud |
| Standard | UL-1691 |
| Package Quantity | 1 |
