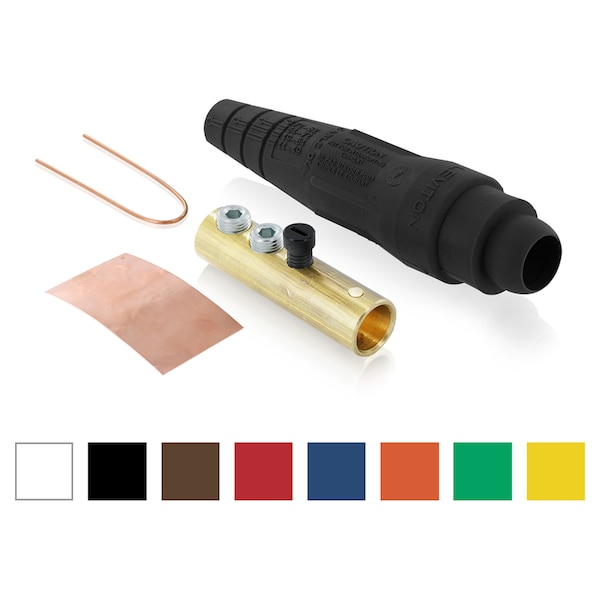

El Ensamble de Conector Eléctrico Hembra Desmontable Leviton con Cabeza de Bola #2-2/0 proporciona una conexión segura y confiable para cables eléctricos de calibre #2-2/0. Perfecto para aplicaciones industriales y comerciales.
| Type | Ball Nose Cam Type |
|---|---|
| Series | 18 |
| Terminal Connection | Double Set Screw |
| Male/Female | Female |
| Current Rating | 300 A |
| Voltage Rating | 600 |
| NEMA Rating | NEMA 3R |
| Single Pole Device Style | Detachable |
| Color | Black |
| Standards | UL/CSA |
| Cable Range | 2 to 2/0 AWG |
| Application | Motor, Generator Splices, Mining, Construction Sites, Commercial, Navy Shipbuilding, Repair, Ot |
| Length | 8 in |
| Width | 11 in |
| Height | 7-1/4 in |
| Standard | UL 1691 |
| Contact Material | Brass |
| Mounting Type | Threaded |
| Wire Size | 2 to 2/0 |
| Housing Material | Santoprene TPV |
| Dimensions | 1.72 in Dia x 6.77 in L |
| Number of Poles | 1 |
| Amperage Rating | 300 |
| Package Quantity | 1 |
