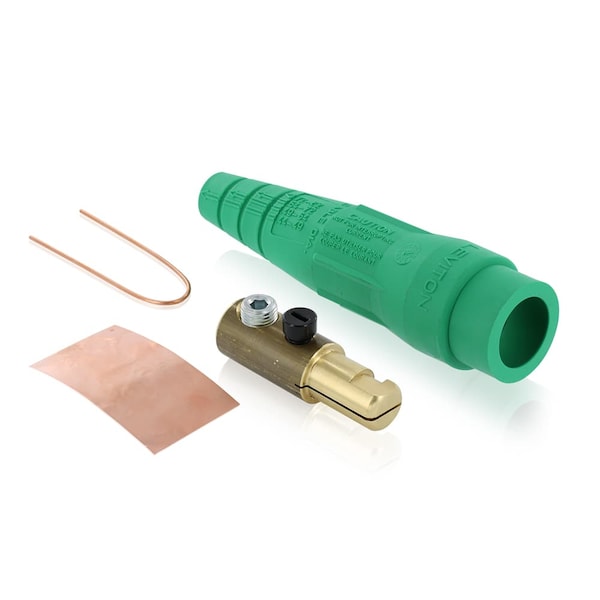

ENSAMBLAJE DE CONECTOR ELÉCTRICO MACHO GN DESMONTABLE CON PUNTA DE BOLA #2-2-0
| Length | 8 in |
|---|---|
| Width | 11 in |
| Max. Voltage | 600 Volt |
| Type | Cam Type |
| Housing Material | TPV |
| Color | Green |
| Wire Size | 2 to 2/0 |
| Contact Material | Solid Brass |
| Application | Motor and Generator Splices, Mining and Construction Sites, Commercial and Navy Shipbuilding an |
| Height | 7-1/4 in |
| Max. Amperage | 300 A |
| Standards and Certifications | UL/CSA |
| Style Name | Detachable |
| Cable Range | 2-2/0 AWG |
| Connection Type | Single Set Screw |
| Contact Cat. No. | 18D21-C |
| Series | 18 |
| Gender | Male |
| Component | Complete |
| Amperage Rating | 300 |
| NEMA Rating | 3R |
| Dimensions | 1.72 in Dia x 6.16 in L |
| Specifications | 1-Pole |
| Package Quantity | 1 |
