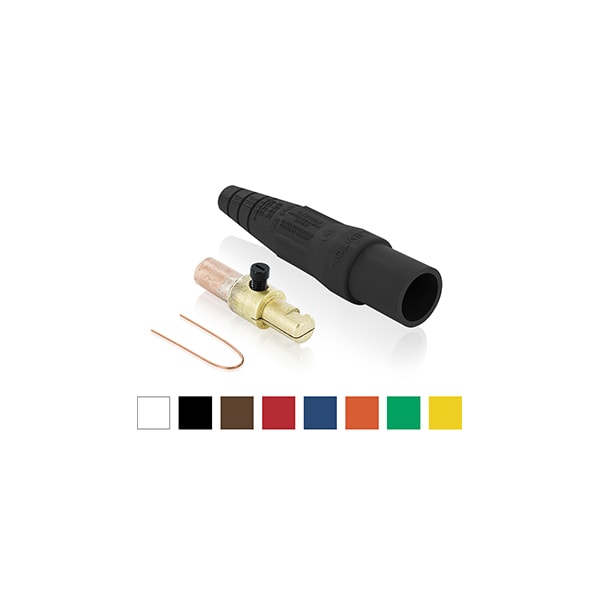

ELECTRICAL CONNECTOR ASSEMBLY ML 16 SRS PLUG CRMP 1/0 - 2/0 AWG YLW
| Length | 8 in |
|---|---|
| Width | 11 in |
| Max. Voltage | 600 Volt |
| Wire Size | 1/0 to 2/0 |
| Housing Material | Santoprene TPV |
| Type | Nose |
| Color | Yellow |
| Application | Sports, Entertainment, Movie Industry, Theme Parks and Carnival Equipment, Concert Venues and C |
| Height | 7-1/4 in |
| Contacts | Brass |
| Cable Range | 1/0-2/0 AWG |
| UL | 1691, 508 - 35k A / 600V Short Circuit Current Rating |
| Strain Relief | Copper Wire |
| NEMA Rating | Type 3R |
| Max. Amperage | 220 A |
| Connection Type | Crimped |
| Gender | Male |
| CSA Standard | 1691 |
| Dimensions | 1.72 in Dia x 7.01 in L |
| Number of Poles | 1 |
| Specifications | 1-Pole, NEMA 3R, Copper Wire Strain Relief |
| Number of Conductors | 1 |
| Voltage Rating | 600 |
| Standard | UL: 1691 |
| Amperage Rating | 300 |
| Series | 16 Series |
| Package Quantity | 1 |
