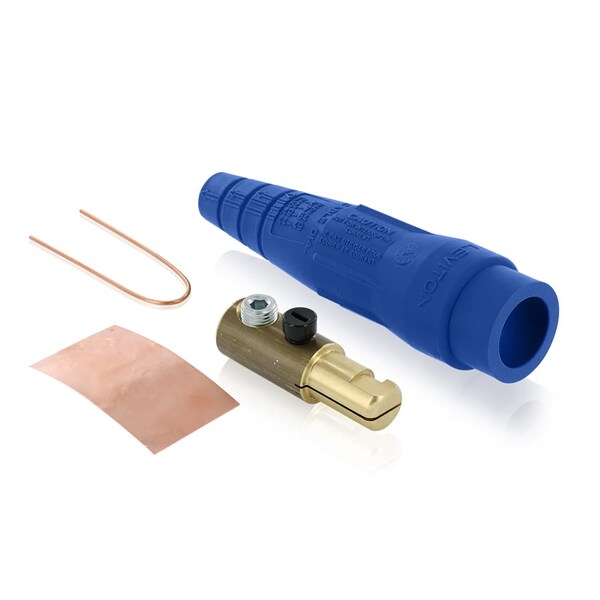

Ensamble de conector eléctrico Leviton ML 18 SRS Plug, ideal para conectar cables de calibre #2-2/0 AWG en color azul. Fabricado con materiales de alta calidad para garantizar una conexión segura y duradera.
| Type | Ball Nose Cam Type |
|---|---|
| Series | 18 |
| Terminal Connection | Single Set Screw |
| Male/Female | Male |
| Current Rating | 300 A |
| Voltage Rating | 600 V |
| Color | Blue |
| Single Pole Device Style | Detachable |
| Cable Range | 2 to 2/0 AWG |
| Standards | UL/CSA |
| Length | 8 in |
| Width | 11 in |
| Application | Motor and Generator Splices, Mining and Construction Sites, Commercial and Navy Shipbuilding an |
| Height | 7-1/4 in |
| Number of Poles | 1 |
| Specifications | 1-Pole, NEMA 3R, Copper Wire Strain Relief |
| Dimensions | 1.72 in Dia x 6.16 in L |
| Wire Size | 2 to 2/0 |
| Connection Type | Screw |
| Housing Material | TPV |
| Amperage Rating | 300 A |
| Contact Material | Brass |
| Package Quantity | 1 |
